TRX420FM1

BUILT TOUGH FOR NZ FARMS

PATRIOT RED
OVERVIEW

TRX420FM1

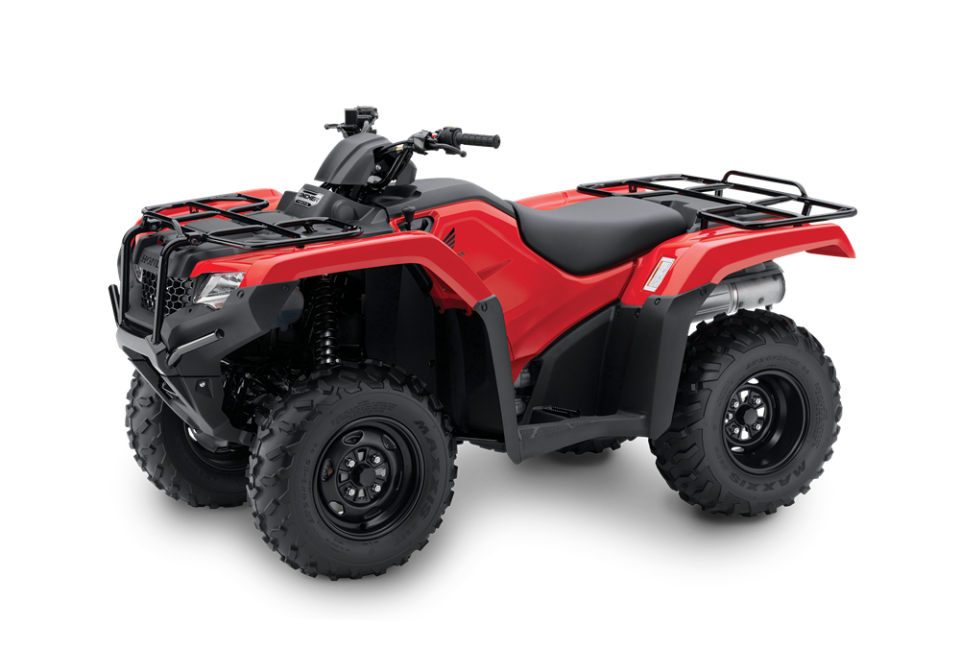

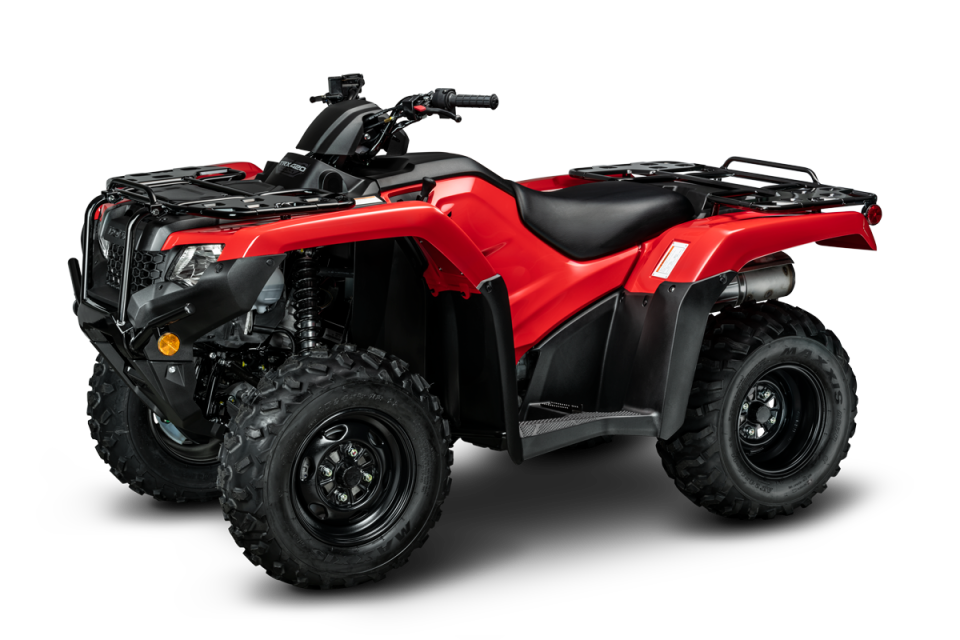

The 420 now utilises the same frame as the 500cc models. The frame is 20 percent stiffer than before. Meaning your ATV can really handle the tough stuff. The TRX420FM1 is one of Honda’s most loved and biggest selling ATVs and now it’s even better. It’s your do-everything benchmark seller with a fuel-injected 420cc, OHV liquid-cooled engine and a strong 5-speed manual transmission. This ATV has all the features to make easy work of hilly terrain.

The Programmed Fuel Injection system improves power delivery and throttle response. It also increases fuel economy so you can cover more ground out on the job. Front and rear suspension systems feature generous travel for a plush and controlled ride. The enclosed-axle type swing arm improves durability, the 420FM1 is ready for anything.

BOOK A TEST RIDE

GALLERY

TRX420FM1

WHY CHOOSE HONDA

WHY CHOOSE HONDA


For over 40 years Honda has been a fixture on farms around New Zealand. With a range of products designed for New Zealand conditions you can rest assured that no matter the task your Honda is up for it.

Simply click on one of the buttons below to hear real stories from real Honda customers or check out just some of the great benefits of using a Honda on farm in New Zealand.

CUSTOMER STORIES HONDA BENEFITS

FEATURES

TAKE A CLOSER LOOK

/10

 BNZ FINANCE

BNZ FINANCE


Honda proudly partners with the BNZ to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.

FIND OUT MORE
SPECIFICATIONS

YOUR BIKE IN DETAIL

TRX420FM1
Engine
Engine Type Liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
CC Rating 420cc
Bore and Stroke 86.5mm x 71.5mm
Ignition Full-transistorised type with electronic advance
Transmission
Starter Electric with auxiliary recoil standard
Gearbox 5 speed manual with Reverse
Final Drive Direct front and rear driveshafts
Wheels, Suspension & Brakes
Suspension Front Independent double-wishbone; 170 mm travel
Suspension Rear Swingarm with single shock; 170 mm travel
Brakes Front Dual hydraulic discs
Brakes Rear Sealed mechanical drum
Tyres Front Maxxis 24 x 8-12
Tyres Rear Maxxis 24 x 10-11
Dimensions & Weight
Wheelbase 1,268mm
Seat Height 856mm
GroundClearance 183mm
Kerb Weight 277kg
Fuel Capacity 14.7 litres including 4.9 litres reserve
Dimensions 2,103mm(L) x 1,205mm(W) x 1,174mm(H)
