OVERVIEW

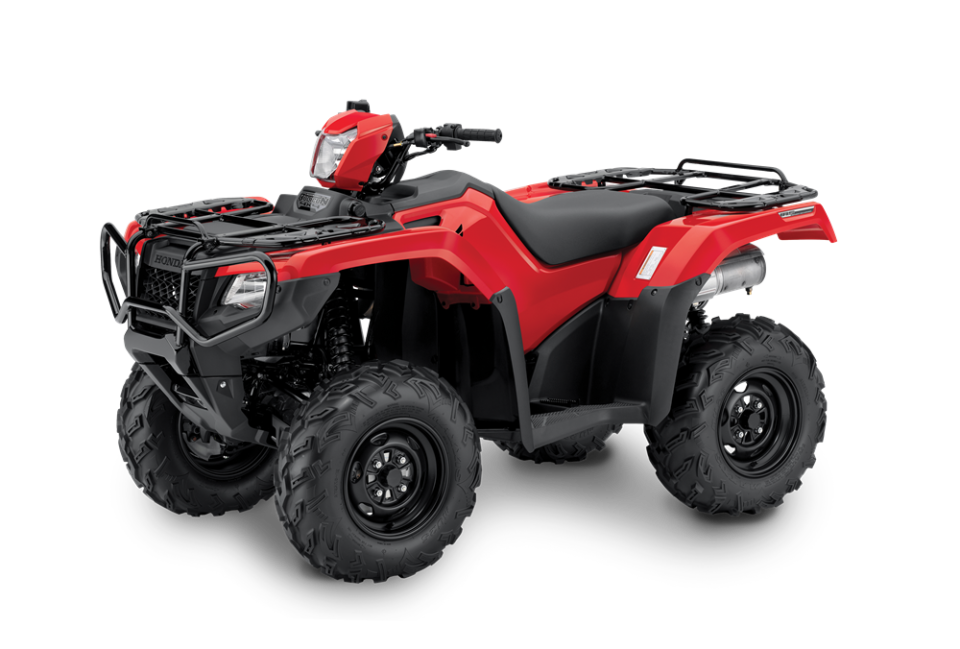

TRX500FM6
This TRX500FM6 IRS stands along side the TRX500FM2 solid rear axle model in the model range and for the first time gives Honda customers the choice of either IRS or solid rear axle and power steering in the 500cc manual ATV segment.
The TRX500FM6 comes with the same power plant, front diff locking system and digital multi function dash (with clock and maintenance minder) as the current TRX500FM range. The new TRX500FM6 also features the increased payload limits of the 500cc IRS range. Front and rear rack limits of 45kg and 85kg respectively and a larger towing capacity of 600kg.
WHY CHOOSE A HONDA
FEATURES
TAKE A CLOSER LOOK
SPECIFICATIONS
YOUR BIKE IN DETAIL
Engine
| Engine Type | Liquid-cooled 4 stroke single cylinder |
| CC Rating | 475cc |
| Bore and Stroke | 92mm x 71.5mm |
| Ignition | Full-transistorized type with electronic advance |
| Carburetion | Programmed Fuel Injection |
| Compression Ratio | 9.5:1 |
Transmission
| Starter | Electric starter with Auxiliary recoil standard |
| Gearbox | Five speed plus reverse |
Wheels, Suspension & Brakes
| Suspension Front | Independent double wishbone. 185mm travel |
| Suspension Rear | Independent double wishbone. 215mm travel |
| Brakes Front | Dual hydraulic 190mm discs |
| Brakes Rear | 170mm hydraulic disc |
| Tyres Front | 25 x 8 -12 |
| Tyres Rear | 25 x 10 -12 |
Dimensions & Weight
| Wheelbase | 1293mm |
| Seat Height | 910mm |
| GroundClearance | 239mm |
| Kerb Weight | 313kg |
| Fuel Capacity | 14.7 litres |
| Dimensions | 2147mm(L) x 1205mm(W) x 1235mm(H) |
