OVERVIEW

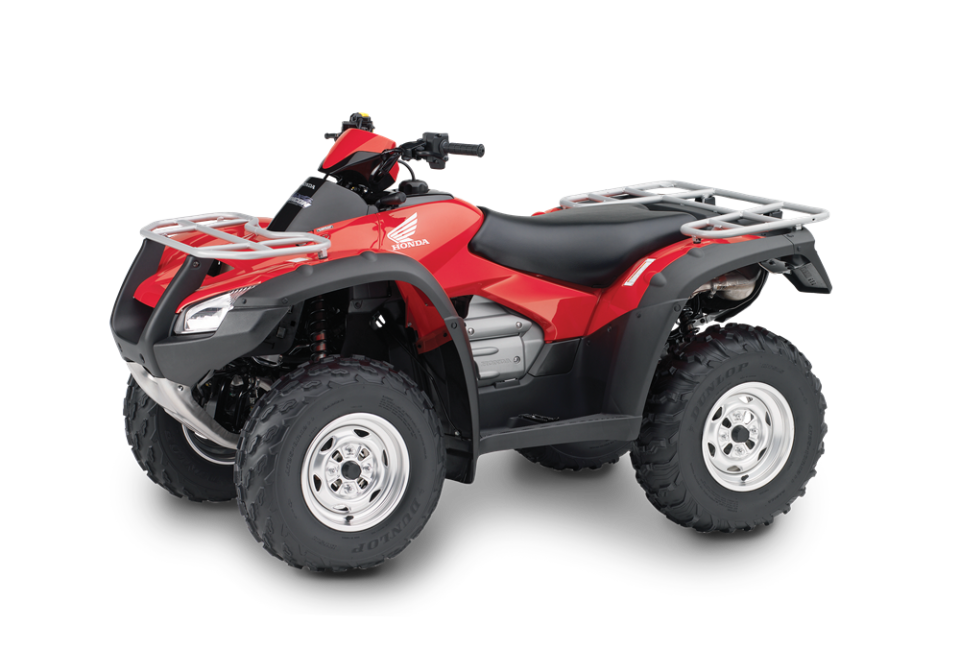

TRX680FA
An off-the-scales star performance puts the TRX680FA a cut above the rest. This ATV is one hardgoing beast when it comes to tackling to-do-lists. Feature-packed, the TRX680FA is really a Sport Utility Vehicle at heart, and style. Class-leading, it is the go-to machine for large trailer towing and pulling horse floats, thanks to its power, precision and ease.
The raw power comes from its 675cc 4-stroke, OHV liquid-cooled engine. The precision from the selectable 2WD/4WD. And the ease from the 3-speed automatic transmission with reverse. To top it all off it has a sleek SUV-like styling and riding feel. This is the biggest, most powerful quad in the Honda series; let your imagination run as wild as your surroundings.
WHY CHOOSE A HONDA
FEATURES
TAKE A CLOSER LOOK
SPECIFICATIONS
YOUR BIKE IN DETAIL
Engine
| Engine Type | Liquid-cooled 4 stroke longitudinally mounted single-cylinder OHV |
| CC Rating | 675cc |
| Bore and Stroke | 102mm x 82mm |
| Ignition | Full transistor with electronic advance |
| Carburetion | Electronic fuel injection |
| Compression Ratio | 9.2:1 |
Transmission
| Starter | Electric with auxiliary recoil |
| Gearbox | Automatic with hydraulic torque converter; 3-speed with reverse; electronic controls |
Wheels, Suspension & Brakes
| Suspension Front | Independent double-wishbone |
| Suspension Rear | Independent double-wishbone |
| Brakes Front | Dual hydraulic disc |
| Brakes Rear | Single hydraulic disc |
| Tyres Front | 25 x 8 R12 |
| Tyres Rear | 25 x 10 R12 |
Dimensions & Weight
| Wheelbase | 1289mm |
| Seat Height | 875mm |
| GroundClearance | 234mm |
| Kerb Weight | 294kg |
| Fuel Capacity | 17 litres (including 4.1 litre reserve) |
| Dimensions | 2113mm(L) x 1189mm(W) x 1207mm(H) |
