best on farm
Honda's all terrain vehicles make farm life easy. No matter the job and its level of difficulty, Honda has the right hardworking ATV for you. Longitudinally mounted engines, generous carry racks, low maintenance solid rear axle or high towing capacity independent rear suspension options. Explore our range starting with the TRX250, the workhorse TRX420 range, the awesome TRX520 range and the new big red TRX700!

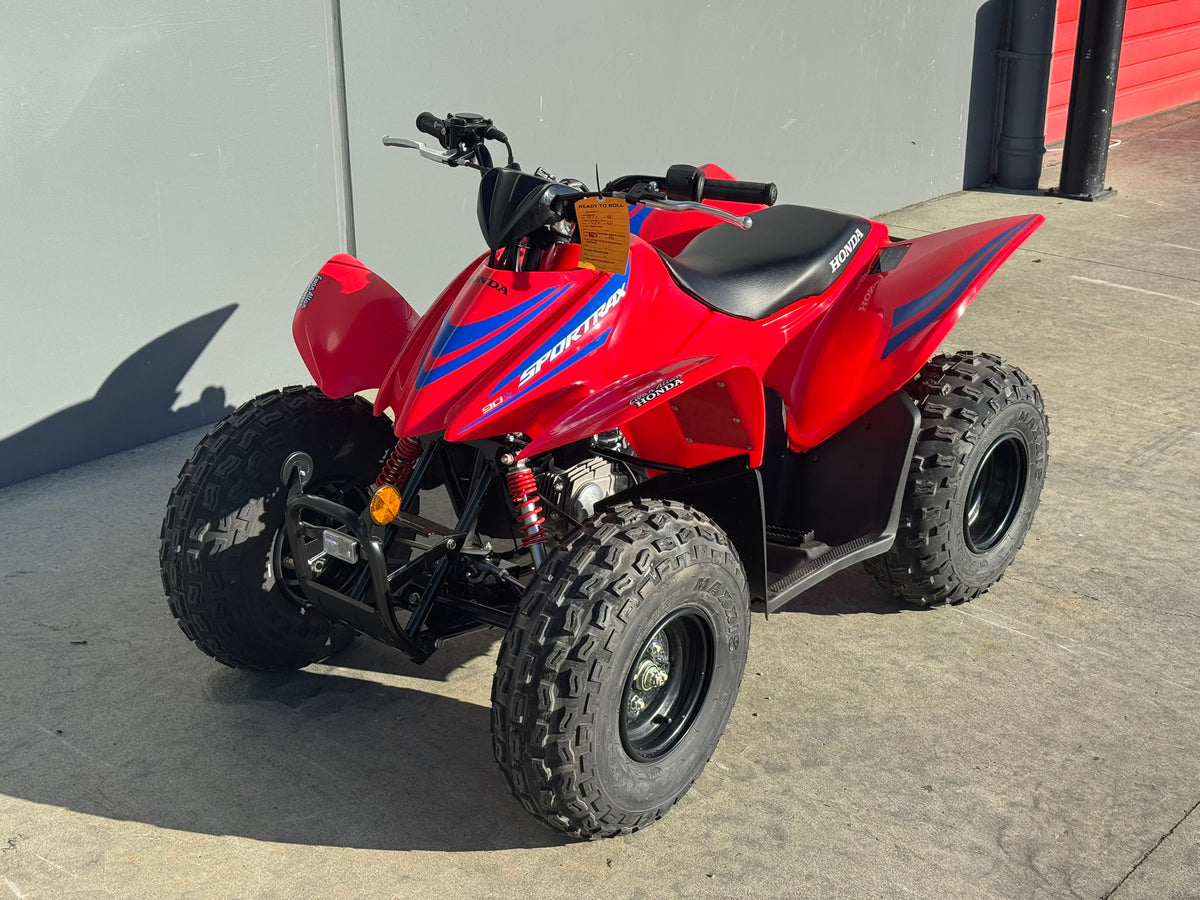

2026 HONDA TRX90X
Start their off-road story off right with the TRX90X. Small but mighty, it’s packed with Honda quality, a no-clutch automatic transmission, and a rider-friendly design that makes it the ideal introduction to adventure. Built just for your little ripper, it’s easy to see why, year after year, the TRX90X roosts every other ATV in its class.
$7,995.00
RRP includes GST
Engine Type = Air-cooled single-cylinder four-stroke
Engine Displacement= 86 cc
Bore and Stroke 47.0mm x 49.5mm Compression Ratio= 9.2:1
Fuel System= 16mm piston-valve carburetor
Starter = Electric
Final Drive = #428 O-ring-sealed chain; 13T/50T
Transmission Type = Four-speed semi-automatic
Drive Modes = 2WD
Suspension Front = Independent single A-arms
Front Wheel Travel = 66 mm
Suspension Rear = Swingarm with single shock
Rear Wheel Travel = 66 mm
Brakes Front Dual = 110mm drums
Brakes Rear = 140mm drum
Tyres Size Front = 20 x 7-8
Tyres Size Rear = 19 x 8-8
Ground Clearance = 99 mm
Seat Height = 660 mm
Kerb Weight= 120 kg ((includes all standard equipment, required fluids and a full tank of fuel))
Fuel Capacity = 6.4 litres
Length = 1489 mm
Width = 895 mm
Height = 927 mm
Minimum Turning Radius = 2.6 m

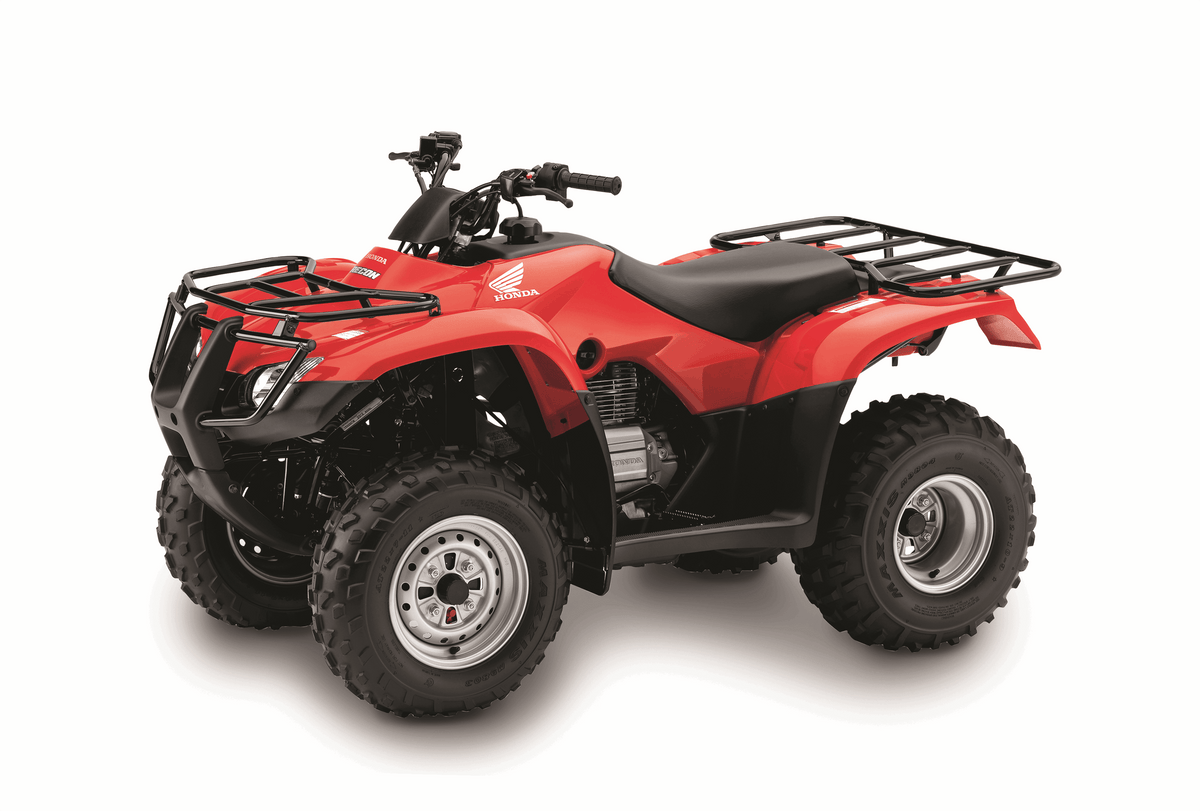

2026 HONDA TRX250TM
If you're looking at getting a TRX250TM, it means your pretty sweet lifestyle is about to get even better. This small-sized, 2-wheel-drive manual transmission ATV suits anyone and everyone that likes to get around on the flat. Ride it down a beach, take it fishing, swing it around your lifestyle block, or down a golf course.
The TRX250TM is lightweight, easy to handle, and very fuel efficient. It hosts a wet sump 229cc 4-stroke OHV air-cooled engine, and a closed crankcase vent system that safeguards against engine oil contamination. Being 2WD it is not specifically designed for towing. However the manual 5-speed gearbox with an automatic clutch means you’ve got plenty of control to inject excitement into any straight. A big bonus is also its size. As the smallest in the range, this TRX250TM is ideal for storing in your garage along with all your other gadgets and gizmos.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$14,599.00
RRP includes GST
Engine Type = Longitudinally mounted air-cooled OHV single-cylinder four-stroke
Engine Displacement = 229 cc
Bore and Stroke = 68.5mm x 62.2mm
Ignition = CDI with electronic advance
Fuel System = Carburetor - 22mm
Starter = Electric with auxiliary recoil
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double-wishbone
Front Wheel Travel = 130 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 125 mm
Brakes Front = Dual sealed hydraulic drum
Brakes Rear = Single sealed mechanical drum
Tyres Size Front = 22 x 7 - 11
Tyres Size Rear = 22 x 10 - 9
Wheelbase = 1130 mm
Ground Clearance = 150 mm
Seat Height = 793 mm
Kerb Weight = 199 kg
Fuel Capacity = 9.1 litres (Including 2.6 litre reserve)
Length = 1905 mm
Width = 1035 mm
Height = 1070 mm
Towing Capacity = 225 kg
Carrier Capactiy = 15 kg

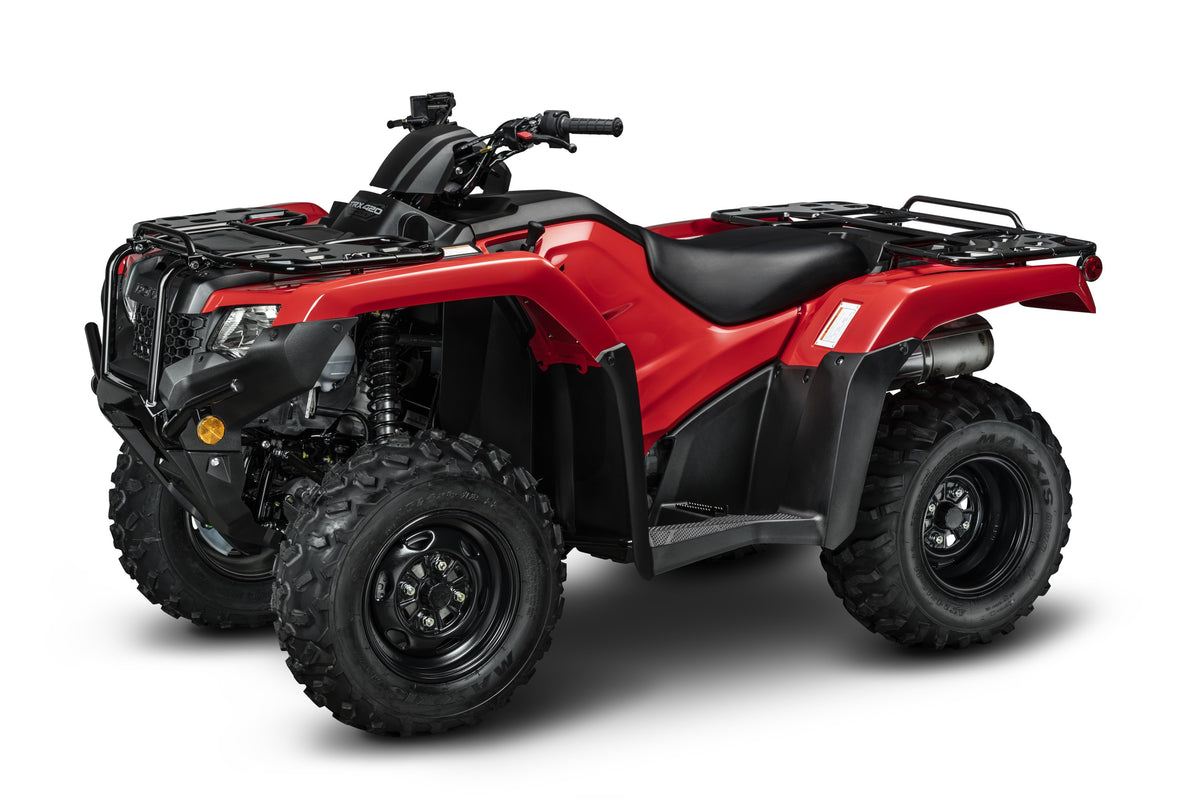

2026 HONDA TRX420TM1
If you want a farm-hand that will pull its weight, and then some, this ATV is perfect for you. The TRX420TM1 is the larger-powered brother of the TRX250TM. A Honda through-and-through it is trusty, reliable, and a four-wheel worker that will do more than just drive your flat-terrain farm.
The big 420cc fuel-injected, OHV liquid-cooled engine boasts enough pulling power to tow a decent trailer or gallivant with a bit of gear. Its 5-speed manual transmission gives you excellent control, and the ability to ride exceptionally slow in first gear and reverse. That means you can follow your stock at their pace, or whatever pace you decide. Without a doubt this is one tough, no-frills Rancher, that will get more than just one job done.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$17,129.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement = 420 cc
Bore and Stroke = 86.5mm x 71.5mm
Ignition = Full-transistorized type with electronic advance
Fuel System = Programmed fuel injection (PGM-FI)
Cylinders = 1
Valves = 4
Starter = Electric with auxiliary recoil
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double-wishbone
Front Wheel Travel = 170 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 170 mm
Brakes Front = Dual hydraulic discs
Brakes Rea = rSealed mechanical drumT
Tyres Size Front = 24 x 8 - 12
Tyres Size Rear = 24 x 10 - 11
Wheelbase = 1268 mm
Ground Clearance = 183 mm
Seat Height = 856 mm
Kerb Weight = 264 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 14.7 litres (Including 4.9 litres reserve)
Length = 2103 mm
Width = 1205 mm
Height = 1174 mm
Towing Capacity = 385 kg
Carrier Capactiy = 30 kg
2026 HONDA TRX420FM1
One of Honda’s most loved ATVs, the TRX420FM1 sets the benchmark for rugged durability. With a reliable and economical 420cc engine this 4WD manual makes easy work of hilly terrain. Throttle response and economy are helped by the latest version of Honda’s Programmed Fuel Injection (PGM-FI) system.
The TRX420FM1 has carry racks, with a built in front storage component perfect for storing keys, a phone, or similar you need to keep safe. It’s equipped with a double-cradle steel frame designed for precise handling and a smooth ride without compromising strength. 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride, and guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints which helps protect the running gear of the bike further improving the durability of this model!
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$18,164.00
RRP includes GST
Engine Type = Longitudinally mounted air-cooled OHV single-cylinder four-stroke
Engine Displacement = 229 cc
Bore and Stroke = 68.5mm x 62.2mm
Ignition = CDI with electronic advance
Fuel System = Carburetor - 22mm
Starter = Electric with auxiliary recoil
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double-wishbone
Front Wheel Travel = 130 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 125 mm
Brakes Front = Dual sealed hydraulic drum
Brakes Rear = Single sealed mechanical drum
Tyres Size Front = 24 x 8 - 12
Tyres Size Rear = 24 x 10 - 11
Wheelbase = 1130 mm
Ground Clearance = 150 mm
Seat Height = 793 mm
Kerb Weight = 199 kg
Fuel Capacity = 9.1 litres (Including 2.6 litre reserve)
Length = 1905 mm
Width = 1035 mm
Height = 1070 mm
Towing Capacity = 225 kg
Carrier Capactiy = 15 kg
2026 HONDA TRX420FM2
The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating ECU mapping for improved steering response and reduced low-speed steering effort for enhanced manoeuvrability.
Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. The storage compartment on the front of the bike and carry racks provide more loading options. Guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical, and capable ATV.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$20,004.00
RRP includes GST
Engine Type = Longitudinally mounted air-cooled OHV single-cylinder four-stroke
Engine Displacement = 229 cc
Bore and Stroke = 68.5mm x 62.2mm
Ignition = CDI with electronic advance
Fuel System = Carburetor - 22mm
Starter = Electric with auxiliary recoil
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double-wishbone
Front Wheel Travel = 130 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 125 mm
Brakes Front = Dual sealed hydraulic drum
Brakes Rear = Single sealed mechanical drum
Tyres Size Front = 24 x 8 - 12
Tyres Size Rear = 24 x 10 - 11
Wheelbase = 1130 mm
Ground Clearance = 150 mm
Seat Height = 793 mm
Kerb Weight = 199 kg
Fuel Capacity = 9.1 litres (Including 2.6 litre reserve)
Length = 1905 mm
Width = 1035 mm
Height = 1070 mm
Towing Capacity = 225 kg
Carrier Capactiy = 15 kg
2026 HONDA TRX420FA2
The TRX420FA2 is the perfect model for those that want an economical, easy to operate and smooth shifting automatic ATV. The automatic dual-clutch transmission (DCT) on the 420FA2 does not rely on unreliable drive belts, instead it has mechanical gears meaning it has the compact size and strength of a manual transmission. It’s incredibly durable and provides excellent engine braking.
An override capability allows manual shifting even when in automatic mode which means you are in full control of your ATV, and new shift mapping delivers even smoother transitions between gears when in auto mode. When reversing, the new reverse-gear actuation mechanism makes shifting to reverse incredibly easy with a fully electronic, one-lever operation. Honda TraxLok allows you to select between 2WD and 4WD modes depending on the conditions.
Elsewhere, the double-cradle steel frame provides the stiffness needed for precise handling and a smooth ride. 170mm of travel in both the front and rear suspension ensures a plush and controlled ride, and guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints!
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$21,154.00
RRP includes GST
Engine Type = Longitudinally mounted air-cooled OHV single-cylinder four-stroke
Engine Displacement = 229 cc
Bore and Stroke = 68.5mm x 62.2mm
Ignition = CDI with electronic advance
Fuel System = Carburetor - 22mm
Starter = Electric with auxiliary recoil
Transmission Type = Auto 5-speed with reverse
Suspension Front = Independent double-wishbone
Front Wheel Travel = 130 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 125 mm
Brakes Front = Dual sealed hydraulic drum
Brakes Rear = Single sealed mechanical drum
Tyres Size Front = 24 x 8 - 12
Tyres Size Rear = 24 x 10 - 11
Wheelbase = 1130 mm
Ground Clearance = 150 mm
Seat Height = 793 mm
Kerb Weight = 199 kg
Fuel Capacity = 9.1 litres (Including 2.6 litre reserve)
Length = 1905 mm
Width = 1035 mm
Height = 1070 mm
Towing Capacity = 225 kg
Carrier Capactiy = 15 kg
2026 HONDA TRX420FA6
After a reliable 420 machine that can deliver on all terrain and in the toughest conditions? The TRX420FA6 is here to do just that.
Perfect for those that want an economical, easy to operate and smooth shifting automatic with independent rear suspension. The automatic dual-clutch transmission (DCT) does not rely on unreliable drive belts, instead it has mechanical gears meaning it has the compact size and strength of a manual transmission. It’s incredibly durable and provides excellent engine braking.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$21,729.00
RRP includes GST
Engine Type = Longitudinally mounted air-cooled OHV single-cylinder four-stroke
Engine Displacement = 229 cc
Bore and Stroke = 68.5mm x 62.2mm
Ignition = CDI with electronic advance
Fuel System = Carburetor - 22mm
Starter = Electric with auxiliary recoil
Transmission Type = Auto 5-speed with reverse
Suspension Front = Independent double-wishbone
Front Wheel Travel = 130 mm
Suspension Rear = Independent dual-arm; 215mm travel
Rear Wheel Travel = 125 mm
Brakes Front = Dual sealed hydraulic drum
Brakes Rear = 170mm disc
Tyres Size Front = 24 x 8 - 12
Tyres Size Rear = 24 x 10 - 11
Wheelbase = 1130 mm
Ground Clearance = 150 mm
Seat Height = 793 mm
Kerb Weight = 199 kg
Fuel Capacity = 9.1 litres (Including 2.6 litre reserve)
Length = 1905 mm
Width = 1035 mm
Height = 1070 mm
Towing Capacity = 225 kg
Carrier Capactiy = 15 kg

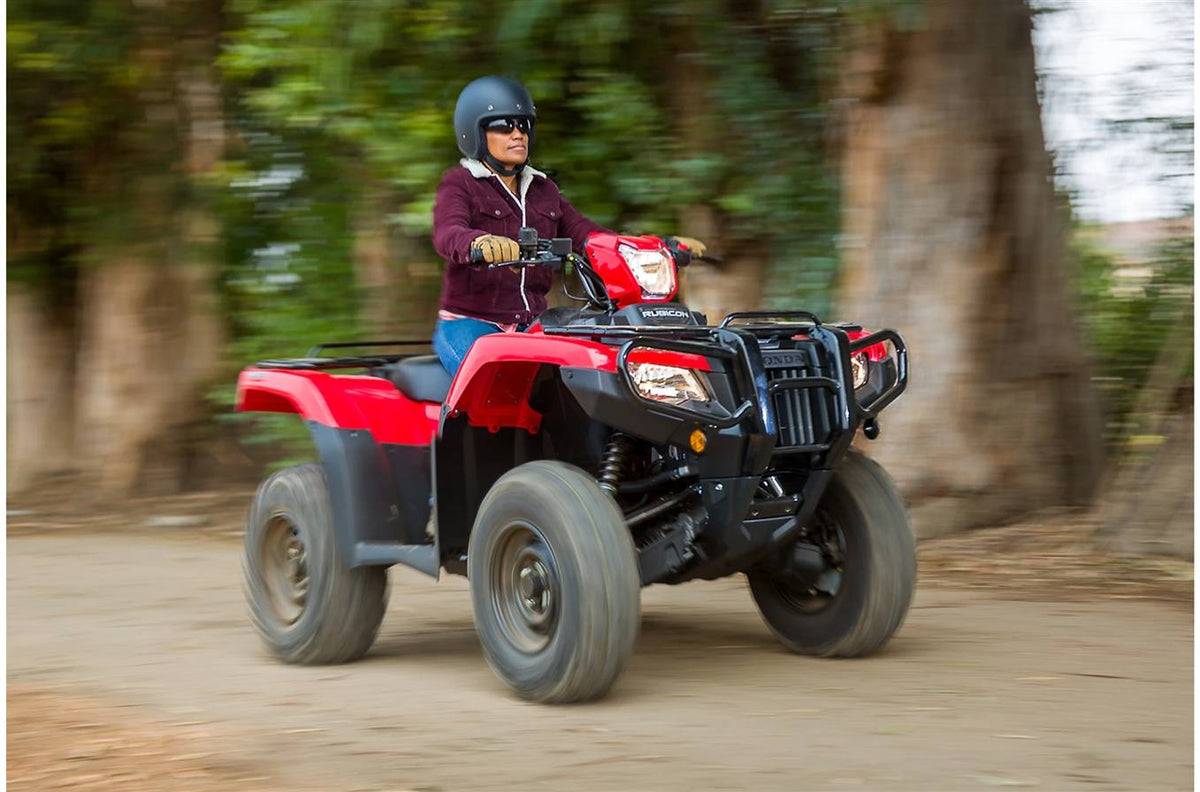

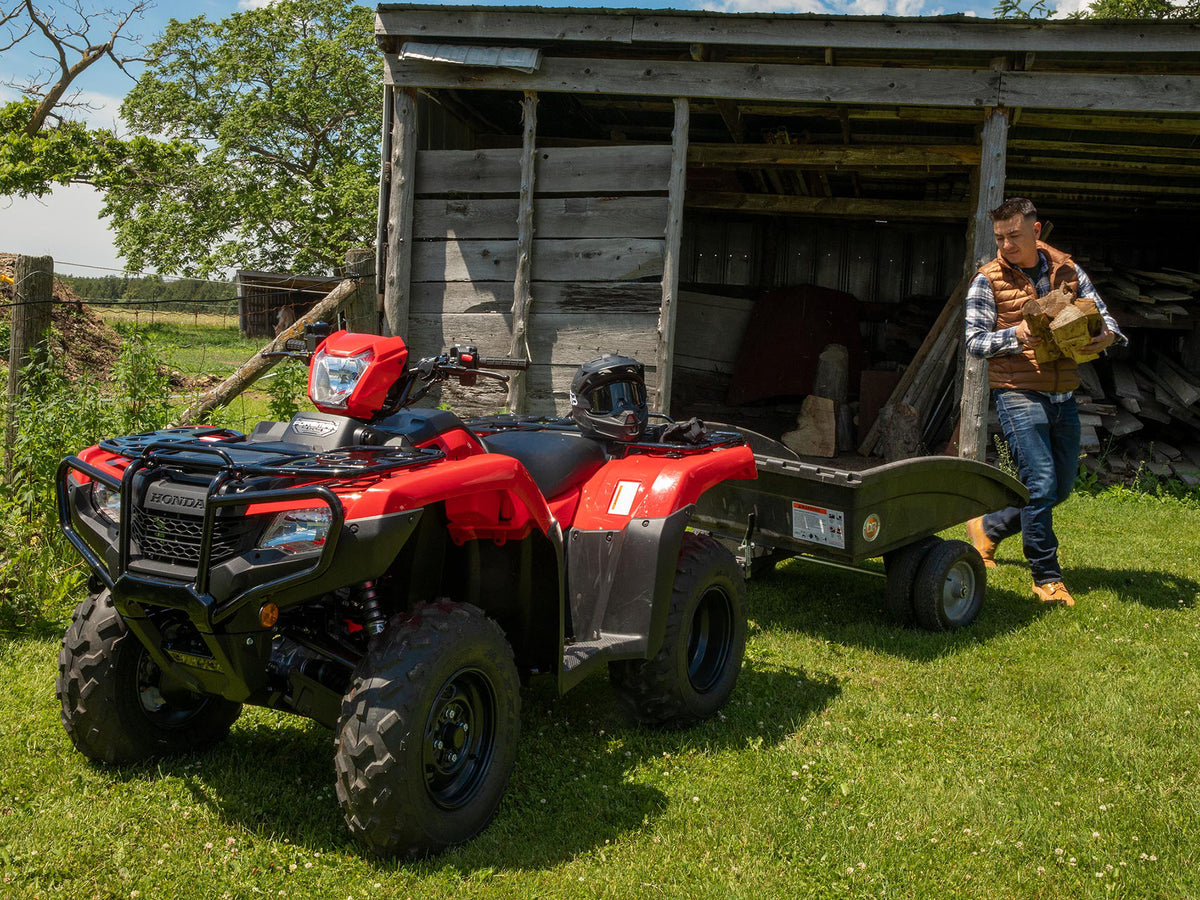

2026 HONDA TRX520fm1
This model is our dedication to offering a premiere no-compromise work ATV. Equipped with a 518cc engine, the TRX520FM1 is strong, powerful, and easy to use.
It provides power and torque where it’s used most - in the low end and midrange - to allow quick acceleration, better ascending, and impressive hauling and towing. The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch, while the front diff-lock maximises traction over very rough terrain. The TRX520FM1 also boasts functional styling, a powerful assist headlight, and storage compartments.
The swing arm-style rear suspension is tried and proven on New Zealand farms. Easily serviceable and with less moving parts, it’s made for durable running in harsh conditions. Towing is made more comfortable by moving the tow hitch onto the swing arm. A bulletproof manual machine loved by Kiwis, it's no wonder the TRX520FM1 is one of NZ’s new favourite ATVs.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$21,269.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement = 518 cc
Bore and Stroke = 96.0mm x 71.5mm
Compression Ratio = 9.5:1
Ignition = Full-transistorised with electronic advance
Fuel System = Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders = 1
Starter = Electric with auxiliary recoil
Final Drive = Direct front and rear driveshafts with TraxLok® and locking front differential
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double wishbone
Front Wheel Travel = 185 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 185 mm
Brakes Front = Dual hydraulic 190mm discs
Brakes Rear = Single sealed 160mm mechanical drum
Tyres Size Front = 25 x 8 - 12
Tyres Size Rear = 25 x 10 - 12
Wheelbase = 1269 mm
Ground Clearance = 190 mm
Seat Height = 877 mm
Kerb Weight = 288 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 14.7 litres (Including 4.9 litres reserve)
Length = 2106 mm
Width = 1205 mm
Height = 1213 mm
Towing Capacity = 385 kg
Carrier Capactiy = 40 kg
2026 HONDA TRX520fm2
This model is our dedication to offering a premiere no-compromise work ATV. Equipped with a 518cc engine, the TRX520FM2 is strong, powerful, and easy to use. Adding electronic power steering to the features of the TRX520FM1.
The motor provides power and torque where it’s used most - in the low end and midrange - to allow quicker acceleration, better ascending and improved hauling and towing. The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch. Front diff lock maximises traction over very rough terrain. The TRX520FM2 boasts new styling, an even more powerful assist headlight, and increased storage compartments.
Elsewhere, the swing arm-style rear suspension is tried and proven on New Zealand farms. Easily serviceable and with less moving parts, it’s made for durable running in harsh conditions. Towing is made more comfortable by moving the tow hitch onto the swing arm. A bulletproof manual machine loved by Kiwis, the TRX520FM2 is set to become NZ’s new favourite ATV.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$23,569.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement = 518 cc
Bore and Stroke = 96.0mm x 71.5mm
Compression Ratio = 9.5:1
Ignition = Full-transistorised with electronic advance
Fuel System = Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders = 1
Starter = Electric with auxiliary recoil
Final Drive = Direct front and rear driveshafts with TraxLok® and locking front differential
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double wishbone
Front Wheel Travel = 185 mm
Suspension Rear = Solid axle swingarm with single shock
Rear Wheel Travel = 185 mm
Brakes Front = Dual hydraulic 190mm discs
Brakes Rear = Single sealed 160mm mechanical drum
Tyres Size Front = 25 x 8 - 12
Tyres Size Rear = 25 x 10 - 12
Wheelbase = 1269 mm
Ground Clearance = 190 mm
Seat Height = 877 mm
Kerb Weight = 288 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 14.7 litres (Including 4.9 litres reserve)
Length = 2106 mm
Width = 1205 mm
Height = 1213 mm
Towing Capacity = 385 kg
Carrier Capactiy = 40 kg
2026 HONDA TRX520fm6
It all starts with a 518cc 4-stroke engine. For those looking for a plush and smooth ride, it’s easy to choose the TRX520FM6. With independent rear suspension (IRS), a manual transmission and power steering, this is an unbelievably capable bike that will provide all-day comfort on the farm.
When you need a durable manual machine that can handle the toughest of terrain, and you also need a large towing capacity, the new TRX520FM6 is the perfect choice. The large engine provides improved power and torque where you need it - in the low end and midrange. Offering quick acceleration, better ascending, and impressive hauling, complementing the massive 600kg towing capacity. A handlebar-mounted switch makes it easy to select between two-wheel drive, four-wheel drive, and four-wheel drive with the front differential locked to handle all conditions and terrain.
The 1.9L utility box with weatherproof cover on the front deck provides a second storage compartment, while the cleverly engineered front and rear cargo racks provide more loading options. Smart styling completes the package and provides a more aggressive stance, making the FM6 better than ever.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$24,029.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement = 518 cc
Bore and Stroke = 96.0mm x 71.5mm
Compression Ratio = 9.5:1
Ignition = Full-transistorised with electronic advance
Fuel System = Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders = 1
Starter = Electric with auxiliary recoil
Final Drive = Direct front and rear driveshafts with TraxLok® and locking front differential
Transmission Type = Manual 5-speed with reverse
Suspension Front = Independent double wishbone
Front Wheel Travel = 185 mm
Suspension Rear = Independent dual-arm
Rear Wheel Travel = 185 mm
Brakes Front = Dual hydraulic 190mm discs
Brakes Rear = Single hydraulic 170mm disc
Tyres Size Front = 25 x 8 - 12
Tyres Size Rear = 25 x 10 - 12
Wheelbase = 1269 mm
Ground Clearance = 190 mm
Seat Height = 877 mm
Kerb Weight = 288 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 14.7 litres (Including 4.9 litres reserve)
Length = 2106 mm
Width = 1205 mm
Height = 1213 mm
Towing Capacity = 600 kg
Front Carrier Capacity = 45 kg
Rear Carrier Capacity = 85 kg

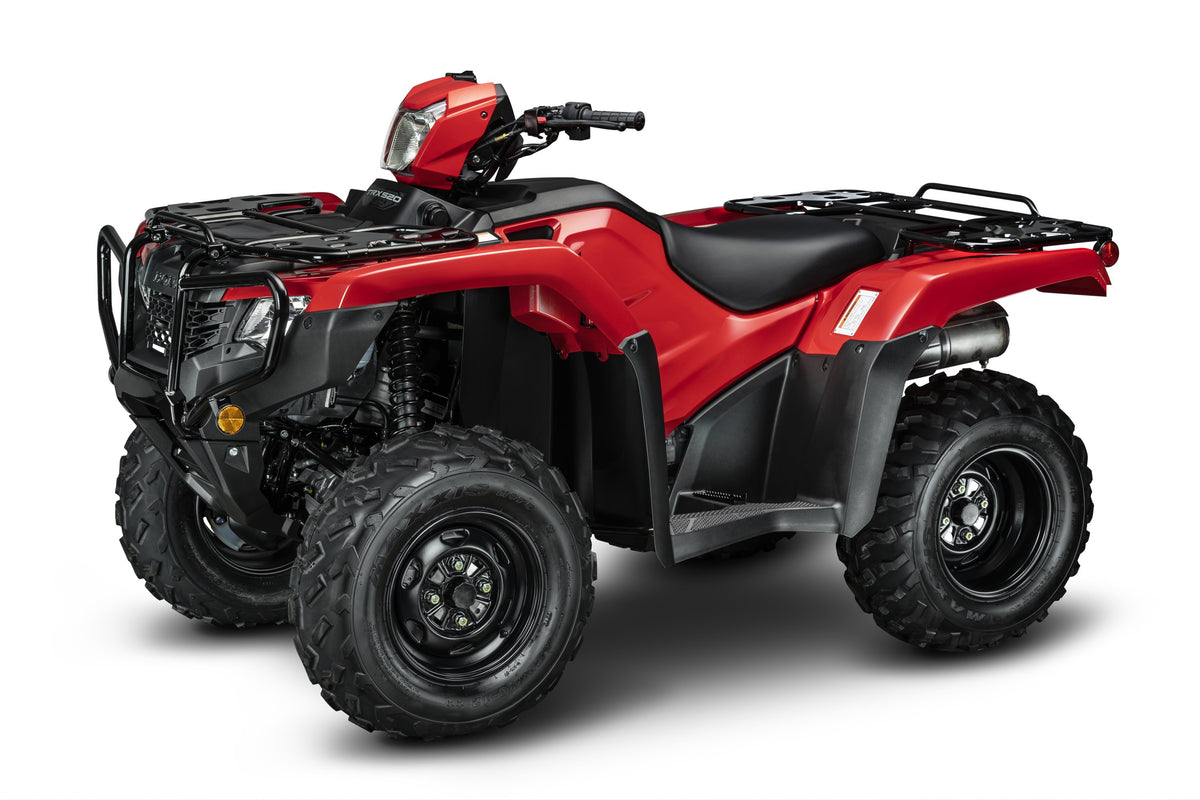

2026 HONDA TRX520fa6
It all starts with a 518cc 4-stroke engine. For those looking for a plush and smooth ride, it’s easy to choose the TRX520FM6. With independent rear suspension (IRS), a manual transmission and power steering, this is an unbelievably capable bike that will provide all-day comfort on the farm.
When you need a durable manual machine that can handle the toughest of terrain, and you also need a large towing capacity, the new TRX520FM6 is the perfect choice. The large engine provides improved power and torque where you need it - in the low end and midrange. Offering quick acceleration, better ascending, and impressive hauling, complementing the massive 600kg towing capacity. A handlebar-mounted switch makes it easy to select between two-wheel drive, four-wheel drive, and four-wheel drive with the front differential locked to handle all conditions and terrain.
The 1.9L utility box with weatherproof cover on the front deck provides a second storage compartment, while the cleverly engineered front and rear cargo racks provide more loading options. Smart styling completes the package and provides a more aggressive stance, making the FM6 better than ever.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$24,604.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement = 518 cc
Bore and Stroke = 96.0mm x 71.5mm
Compression Ratio = 9.5:1
Ignition = Full-transistorised with electronic advance
Fuel System = Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders = 1
Starter = Electric with auxiliary recoil
Final Drive = Direct front and rear driveshafts with TraxLok® and locking front differential
Transmission Type = Dual Clutch Automatic; 5-speed with reverse and High/Low
Suspension Front = Independent double wishbone
Front Wheel Travel = 185 mm
Suspension Rear = Independent dual-arm
Rear Wheel Travel = 185 mm
Brakes Front = Dual hydraulic 190mm discs
Brakes Rear = Single hydraulic 170mm disc
Tyres Size Front = 25 x 8 - 12
Tyres Size Rear = 25 x 10 - 12
Wheelbase = 1269 mm
Ground Clearance = 190 mm
Seat Height = 877 mm
Kerb Weight = 288 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 14.7 litres (Including 4.9 litres reserve)
Length = 2106 mm
Width = 1205 mm
Height = 1213 mm
Towing Capacity = 600 kg
Front Carrier Capacity = 45 kg
Rear Carrier Capacity = 85 kg

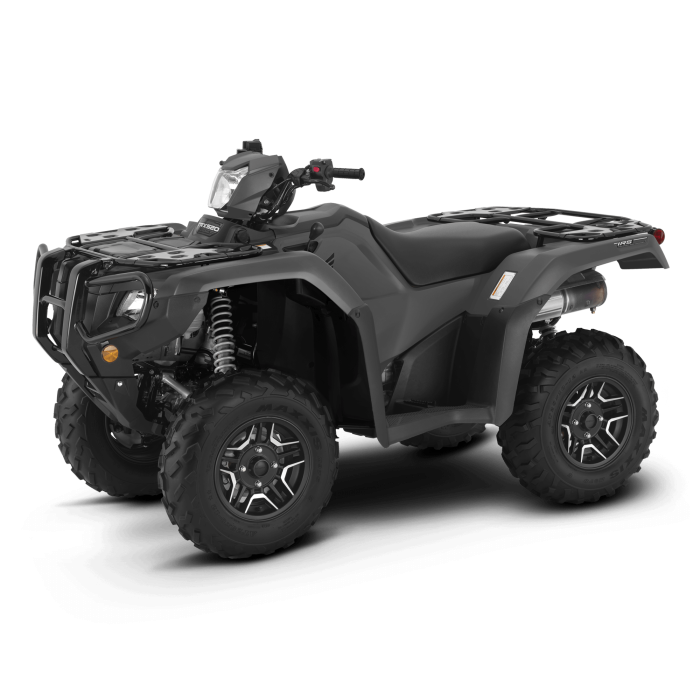

2026 HONDA TRX520fa7
The TRX520FA7 is ready to work hard and play hard. With aluminum wheels, colour-matched suspension, and painted bodywork. Plus TRX520 features like independent rear suspension (IRS) for a smooth ride over rough terrain. The reliable, proven 518cc Honda engine that punches way above its class when it comes to efficiency and power. Top it all off with an automatic dual-clutch transmission (DCT) featuring both automatic and manual modes, a hi-low range sub transmission, and a reverse switch to simplify the transition into and out of reverse.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$25,294.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement = 518 cc
Bore and Stroke = 96.0mm x 71.5mm
Compression Ratio = 9.5:1
Ignition = Full-transistorised with electronic advance
Fuel System = Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders = 1
Starter = Electric with auxiliary recoil
Final Drive = Direct front and rear driveshafts with TraxLok® and locking front differential
Transmission Type = Dual Clutch Automatic; 5-speed with reverse and High/Low
Suspension Front = Independent double wishbone
Front Wheel Travel = 185 mm
Suspension Rear = Independent dual-arm
Rear Wheel Travel = 185 mm
Brakes Front = Dual hydraulic 190mm discs
Brakes Rear = Single hydraulic 170mm disc
Tyres Size Front = 25 x 8 - 12
Tyres Size Rear = 25 x 10 - 12
Wheelbase = 1269 mm
Ground Clearance = 190 mm
Seat Height = 877 mm
Kerb Weight = 288 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 14.7 litres (Including 4.9 litres reserve)
Length = 2106 mm
Width = 1205 mm
Height = 1213 mm
Towing Capacity = 600 kg
Front Carrier Capacity = 45 kg
Rear Carrier Capacity = 85 kg

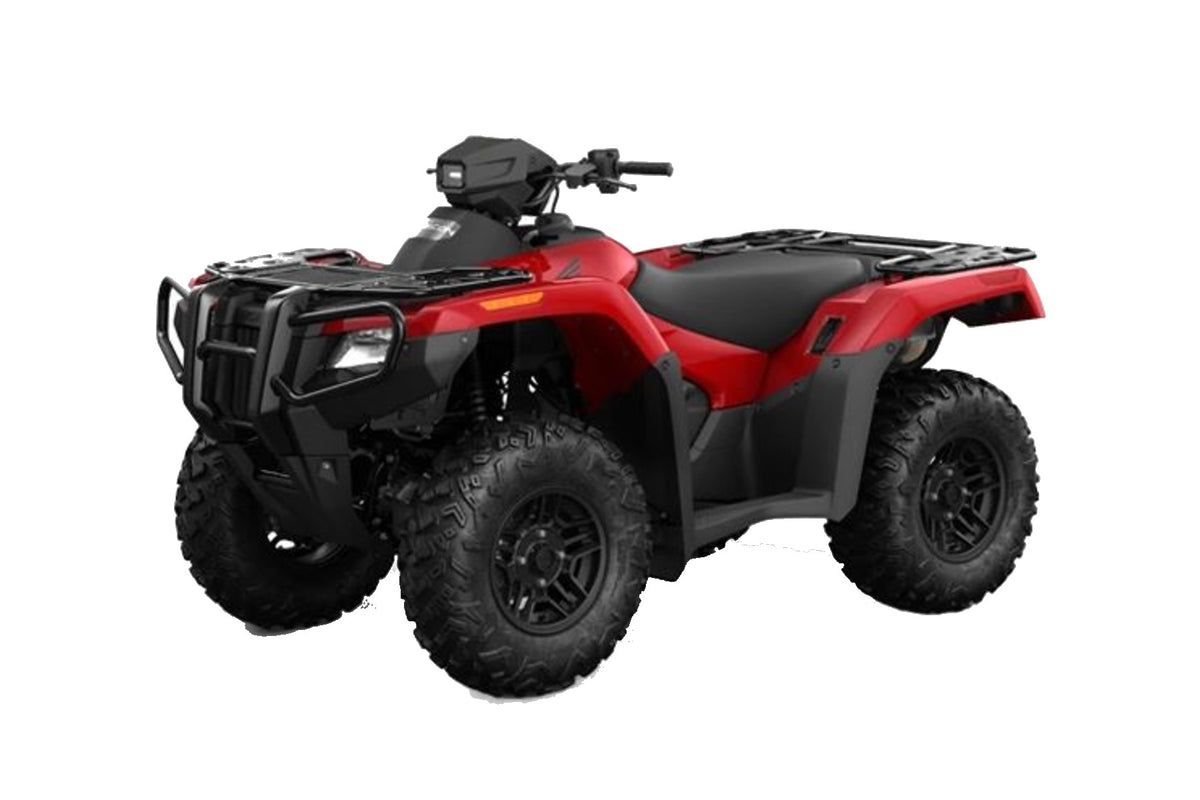

2026 HONDA TRX700fa5
When it comes to our TRX700, there’s big news, and some big improvements too. Check out these highlights - new, bigger 26-inch tyres with a more aggressive tread pattern, mounted on new cast-aluminum wheels. New instruments with a bigger screen that’s easier to read. More integrated storage. New racks front and rear that can carry heavier loads (50 percent more for the front and 42 percent more for the rear) and now feature our super-convenient Honda Pro-Connect® accessory quick-attach system. Updates to the automatic transmission. A bigger, tougher front bumper, and sharp new styling.
What hasn’t changed is the fact that it’s the largest-displacement ATV in our lineup—with the same engine as in our hard-working Pioneer 700 side-by-side. It also offers our smooth-shifting fully automatic transmission and selectable TraxLok® four-wheel-drive system. The fully independent rear suspension is a big part of the TRX700's uncompromising comfort, making it perfect for all day riding.
Save up to $1200 on selected Honda ATVs OR score a hot 4.95% Finance rate* at your local ewan allan honda (till 30th of june)
$25,064.00
RRP includes GST
Engine Type = Longitudinally mounted liquid-cooled single-cylinder four-stroke
Engine Displacement = 675 cc
Bore and Stroke = 102mm x 82.6mm
Compression Ratio = 9.2:1
Ignition = Full transistorised with electronic advance
Fuel System = Electronic fuel injection (PGM-FI) - 40mm throttle body
Cylinders = 1
Valves = 4
Starter = Electric with auxiliary recoil
Final Drive = Direct front and rear drive shafts with Traxlok® and locking front differential
Transmission Type = Automatic with hydraulic torque converter, 3-speed with reverse and electronic control
Suspension Front = Independent double-wishbone
Front Wheel Travel = 175 mm
Suspension Rear = Independent dual-arm
Rear Wheel Travel = 203 mm
Brakes Front = Dual hydraulic 180mm discs
Brakes Rear = Single hydraulic 170mm disc
Tyres Size Front = 26 x 8 - 12
Tyres Size Rear = 26 x 10 - 12
Headlight = LED
Wheelbase = 1286 mm
Ground Clearance = 241 mm
Seat Height = 884 mm
Kerb Weight = 318 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity = 16.6 litres (Including 4.5 litre reserve)
Length = 2197 mm
Width = 1206 mm
Height = 1219 mm
Towing Capacity = 385 kg
Carrier Capactiy = 45 kg
