Honda pumps excel in combustion efficiency resulting in high performance, less emissions and greater fuel economy through their commercial grade engines.
With portable, medium duty, trash, fire fighting and light chemical pumps available, our complete pump line-up is designed to move liquids quickly, safely, quietly and easily. There's something in the range for any job and to get everyone pumped!

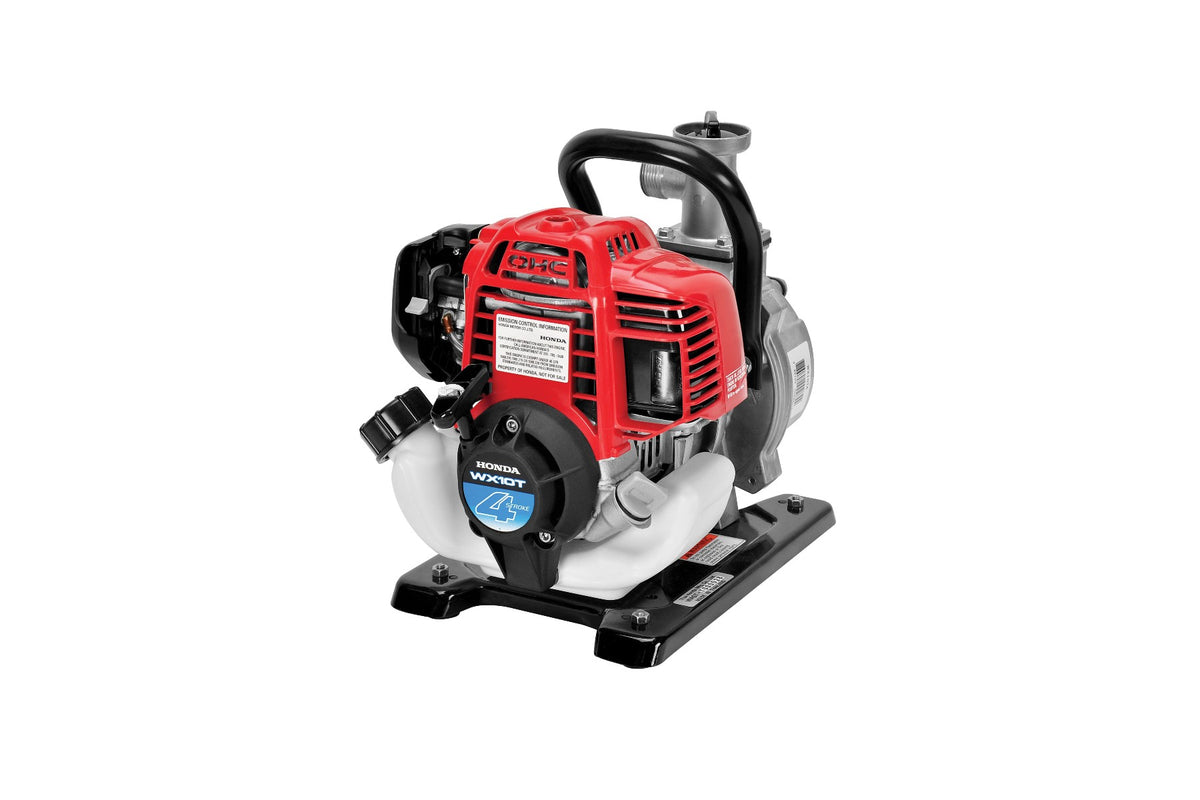

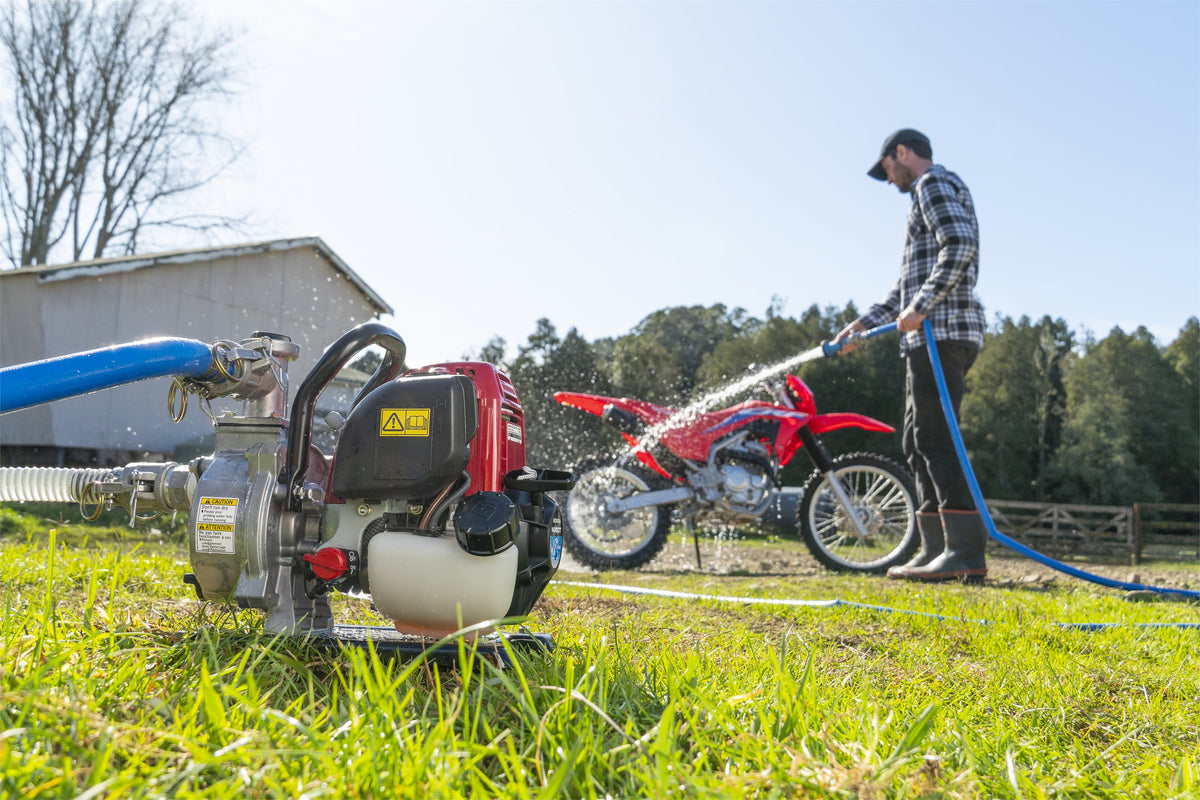

HONDA WX10 Portable Pump 1''
The lightweight WX10 is capable of generating impressive pressure - ideal for sprinkling, drainage, cleaning, irrigation or general water transfer.
$849
RRP includes GST
Pump Use = Water Transfer Pump
Product Code = WX10TU
Pump Type = Centrifugal Volume Pump
Engine = GX25
Displacement = 25 cc
Fuel Type = Unleaded
Total Head = 36 m
Max Head = 36
Suction Head = 8 m
Max Discharge Capacity = 120 litres/min
Self Priming Time (at 5m) 80 seconds
Fuel Consumption = 0.54 litres/hour approx.
Hose Band/Stainer = Yes
Fuel Tank Capacity (Litres) = 0.53 litres
Discharge Port Diameter = 25 mm
Suction Port Diameter = 25 mm
Length = 340 mm
Width = 220 mm
Height = 295 mm
Dry Weight = 6.1 kg approx.

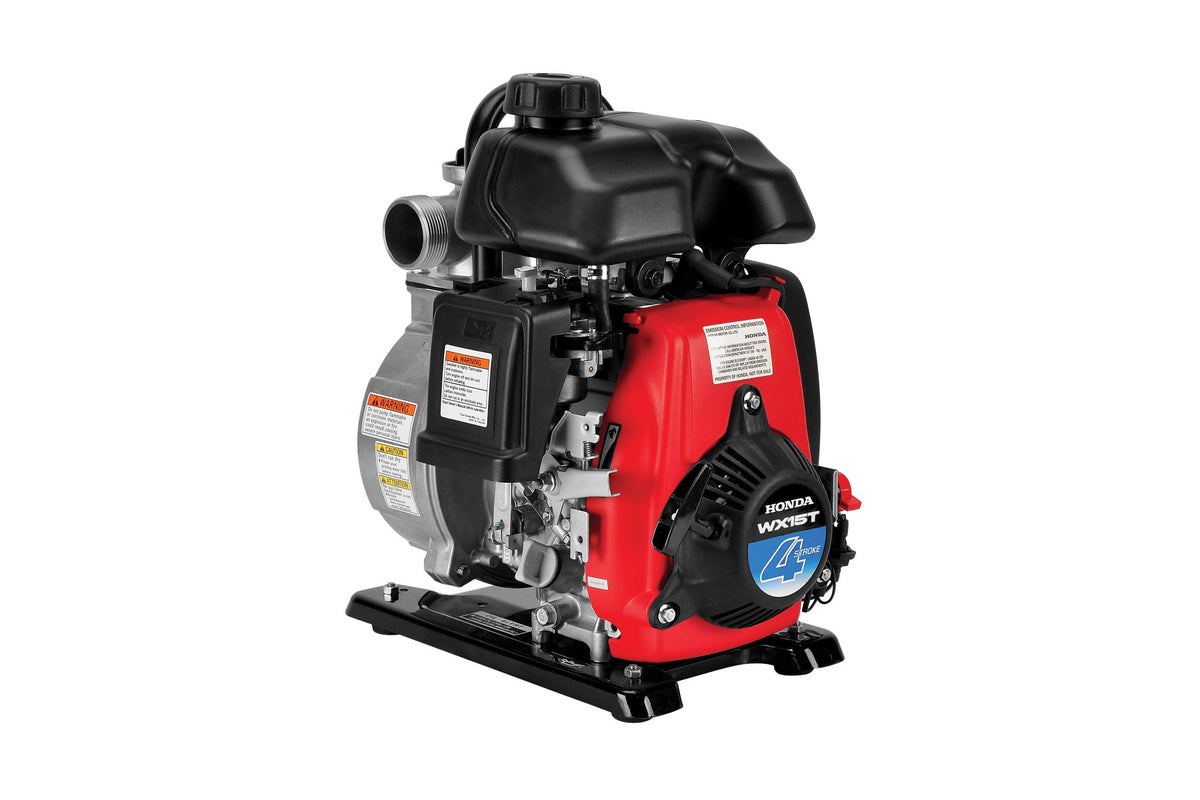

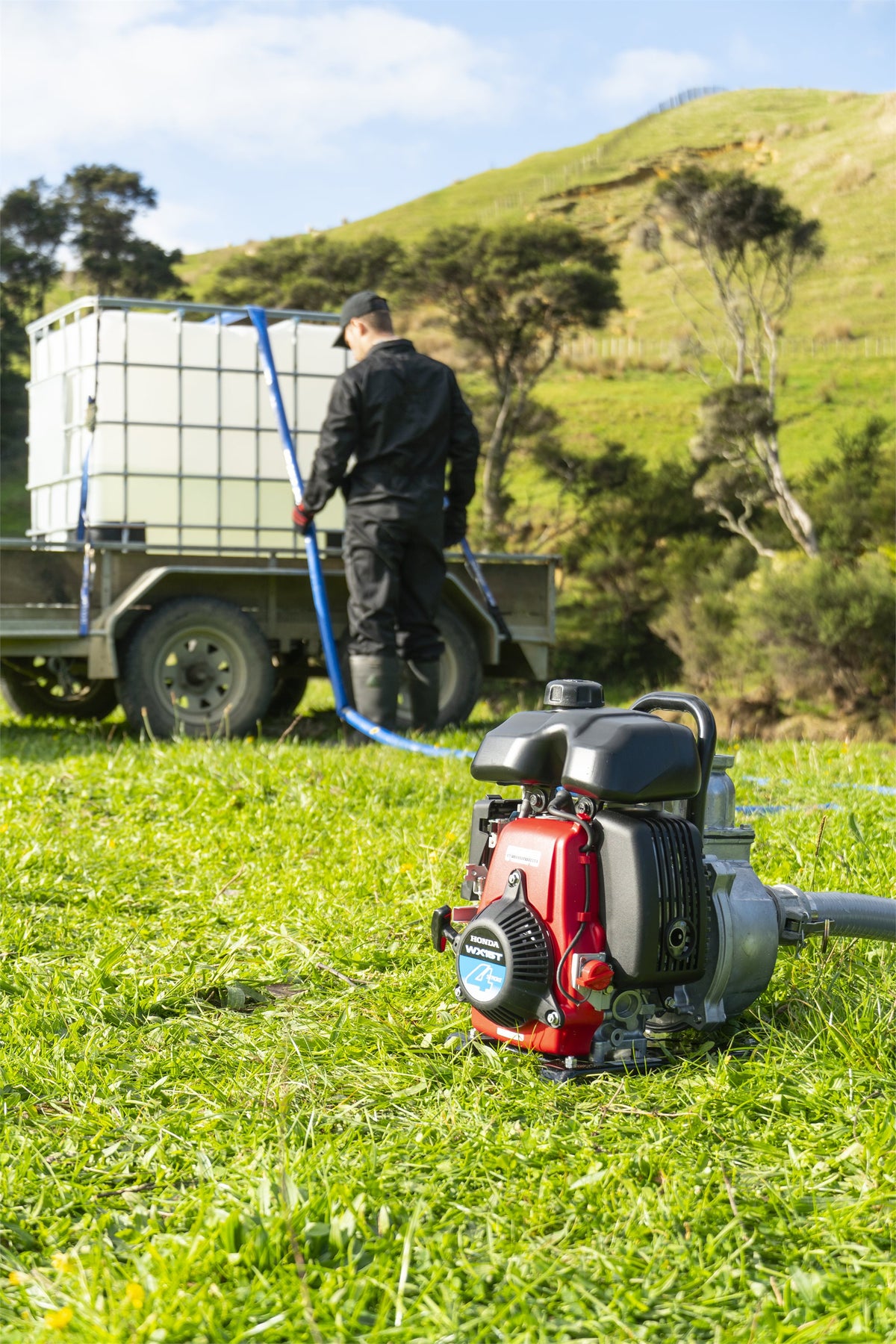

HONDA WX15 Portable Pump 1.5''
The lightweight WX15 is capable of generating impressive pressure - ideal for sprinkling, drainage, cleaning, irrigation or general water transfer.
$949
RRP includes GST
Pump Use = Water Transfer Pump
Product Code = WX15TU
Pump Type = Centrifugal volume pump
Engine = GXH50
Displacement = 50 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 40 m
Max Head = 40
Suction Head = 8 m
Max Discharge Capacity = 280 litres/min
Self Priming Time (at 5m) 120 seconds
Fuel Consumption = 0.91 litres/hour approx.
Hose Band/Stainer = Yes
Fuel Tank Capacity (Litres) = 0.77 litres
Discharge Port Diameter = 40 mm
Suction Port Diameter = 40 mm
Length = 355 mm
Width = 275 mm
Height = 375 mm
Dry Weight = 9.1 kg approx.

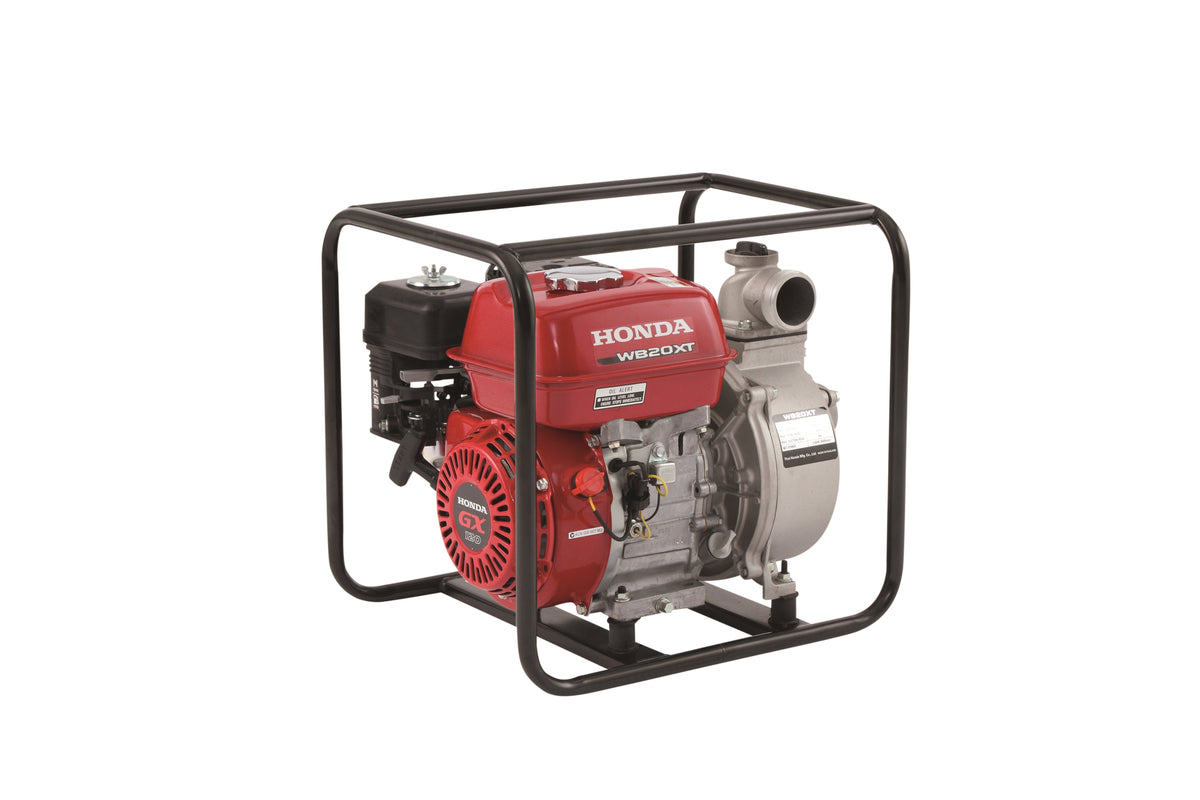

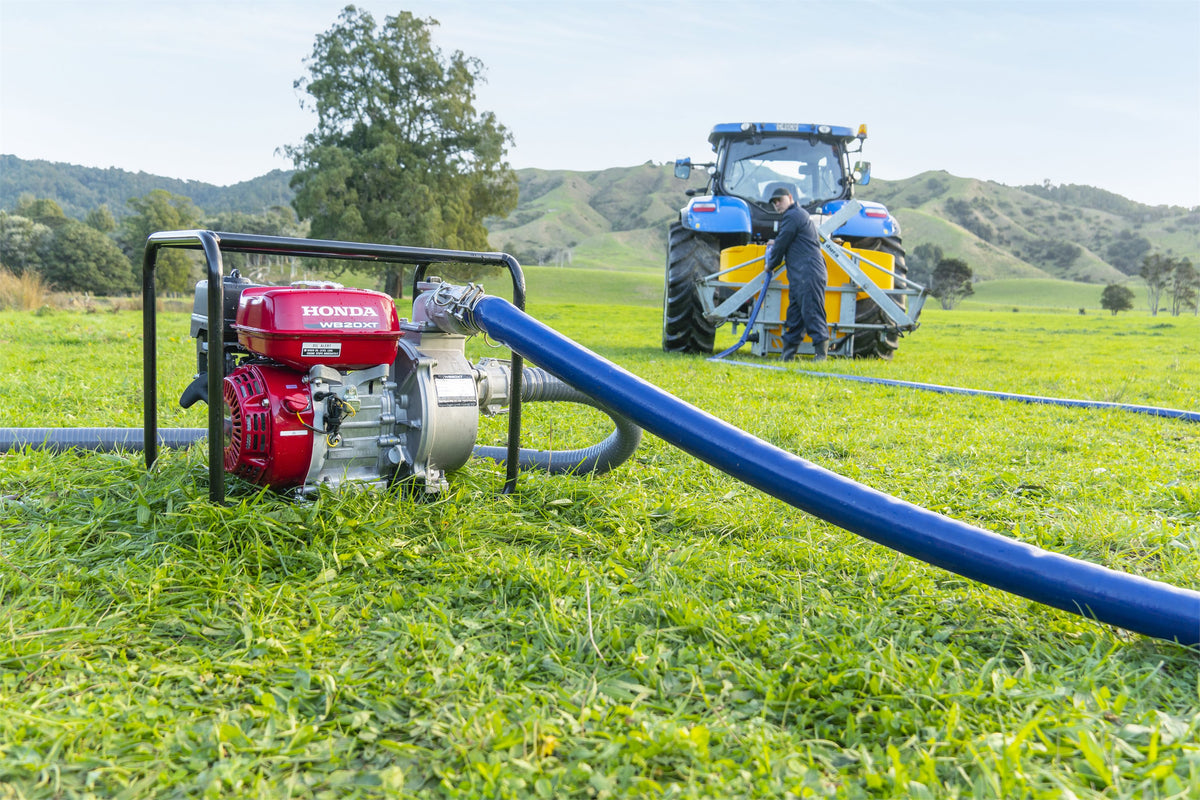

HONDA WB20 Water Pump 2''
For professionals up against it, the WB20 has the features for moving large amounts of water – fast. In fact it can deliver 600 litres per minute, with a maximum total head of 32m.
$1,099
RRP includes GST
Pump Use = Water Transfer Pump
Product Code = WB20XT4DRXU
Pump Type = Centrifugal volume pump
Engine = GX120
Displacement = 118 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 32 m
Max Head = 32
Suction Head = 8 m
Max Discharge Capacity = 600 litres/min
Self Priming Time (at 5m) = 110 seconds
Fuel Consumption = 0.99 litres/hour approx.
Mounting = Rubber
Hose Band/Stainer = Yes
Fuel Tank Capacity (Litres) = 2.5 litres
Discharge Port Diameter = 50 mm
Suction Port Diameter = 50 mm
Length = 455 mm
Width = 365 mm
Height = 420 mm
Dry Weight = 21 kg approx.

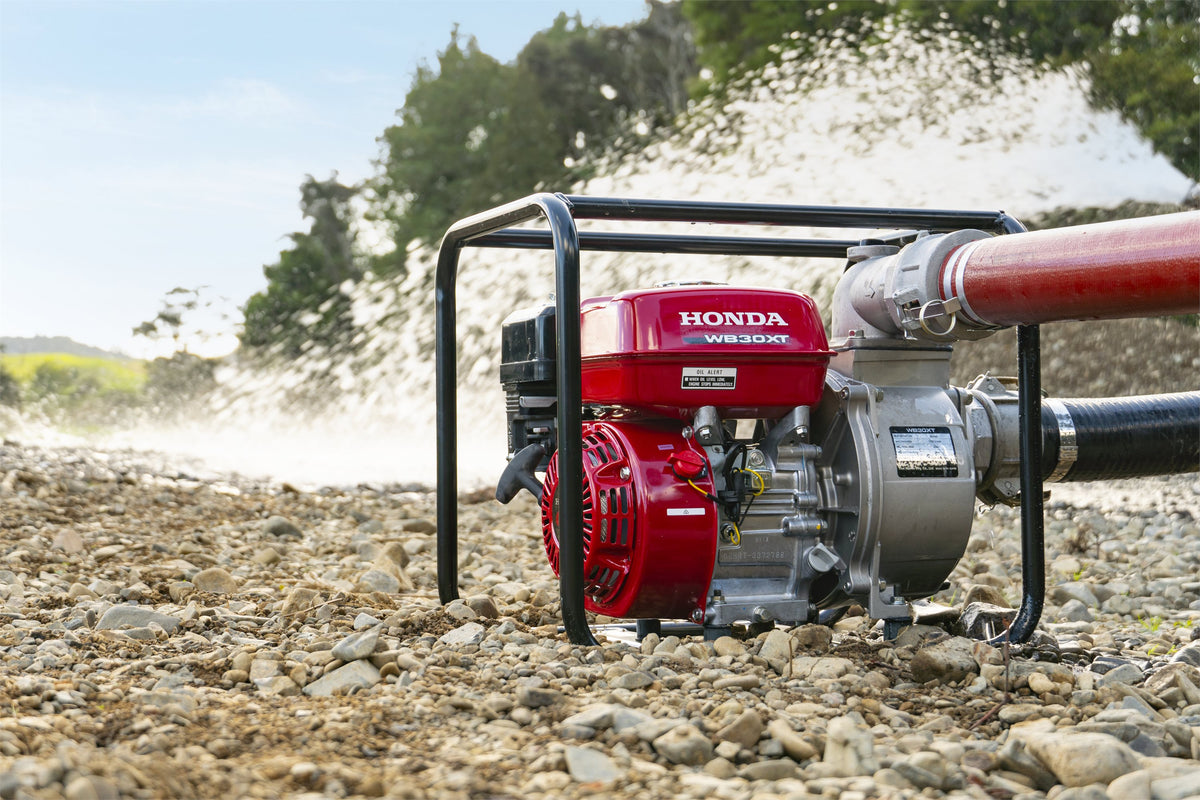

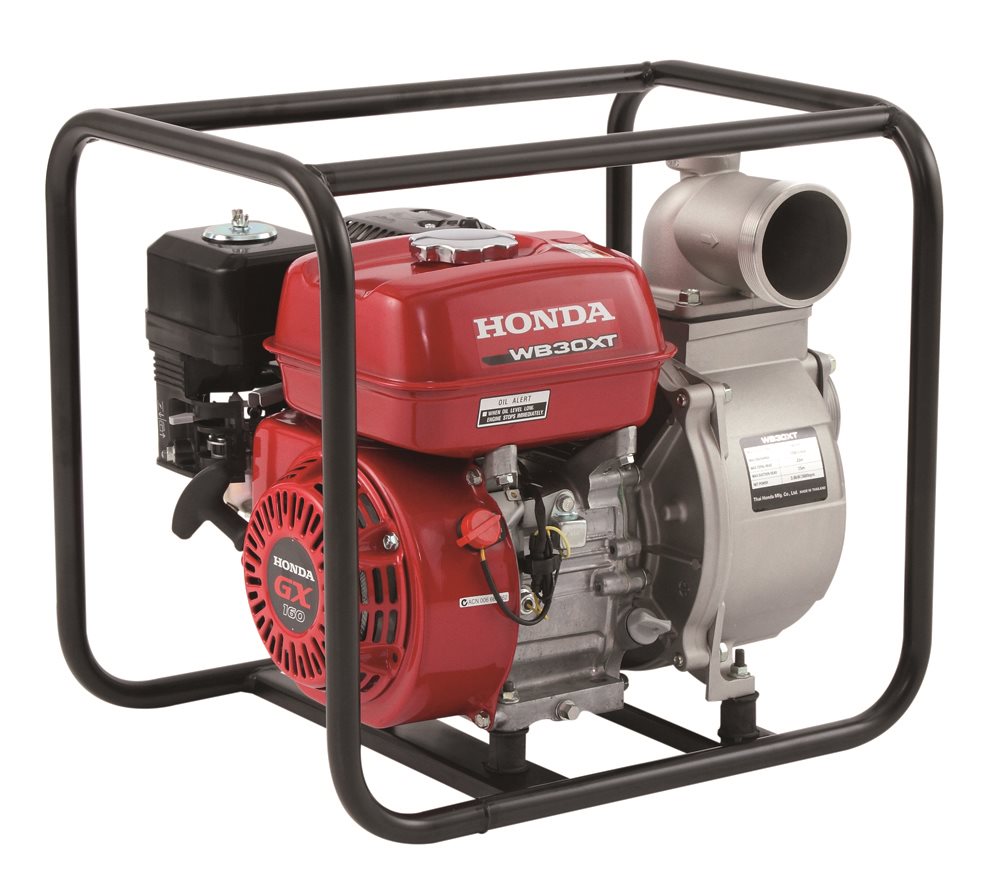

HONDA WB30 Water Pump 3''
For professionals up against it, the WB30 has the features for moving large amounts of water – fast. In fact it can deliver 1100 litres per minute, with a maximum total head of 23m.
$1,199
RRP includes GST
Pump Use = Water Transfer Pump
Product Code = WB30XT3DRXU
Pump Type = Centrifugal volume pump
Engine = GX160
Displacement = 163 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 23 m
Max Head = 23
Suction Head = 7.5 m
Max Discharge Capacity = 1100 litres/min
Self Priming Time (at 5m) = 150 seconds
Fuel Consumption = 1.9 litres/hour approx.
Mounting = Rubber
Hose Band/Stainer = Yes
Fuel Tank Capacity (Litres) = 3.1 litres
Discharge Port Diameter = 80 mm
Suction Port Diameter = 80 mm
Length = 510 mm
Width = 385 mm
Height = 455 mm
Dry Weight = 27 kg approx.

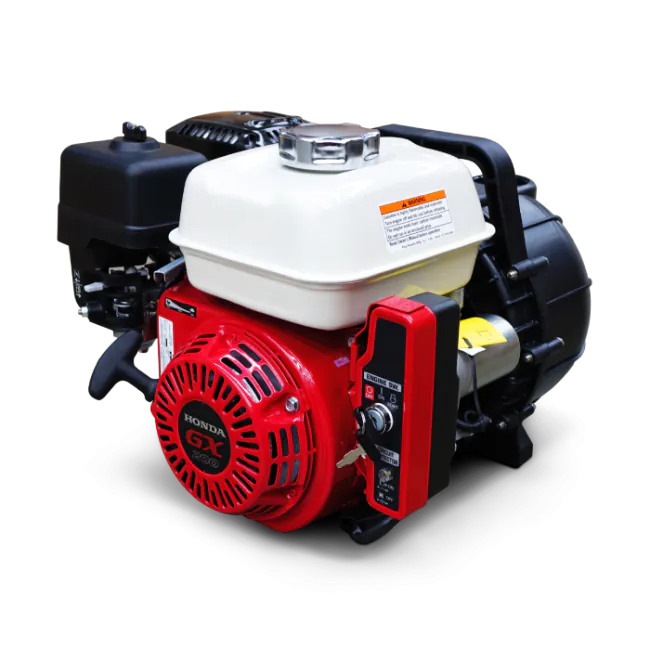

HONDA RPP2PUMP 2''
Honda's light chemical pump range is designed for light chemical use. It is best to check with your local dealer as to the suitability of the pump for the chemical you wish to use.
This is the recoil pull start version.
Electric start Option is $2,099 INC GST
GENERAL FEATURES
The RPP2PUMP Self-Priming Centrifugal pump is lightweight and chemically resistant for general service on water, salt water, waste water, mild acids and bases. The pumps are moulded of tough, glass-reinforced polyester, polypropylene.
Pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids.
- Max. Flow – 650lpm
- Self-Priming
- GX200 engine
- Portable lift handle
- Electric start option available
APPLICATIONS
The RPP range of pumps is designed for light chemical use. These pumps are best suited for commercial and agricultural users, as most domestic users will not encounter liquid that’s abrasive enough to warrant a chemical water pump. These pumps are chemically resistant for general use with salt water, waste water, and mild acids and bases.
OPERATING CONDITIONS
Suitable for pumping chemical liquids without solids or fibres in suspension.
We advise that you consult your local Honda Dealer for product suitability as engine performance is greatly reduced with increased ambient temperature and/or altitude.
$1,499
RRP includes GST
Pump Use = Chemical Pump
Product Code = RPP2PUMP
Pump Type = Light Chemical Pump
Engine = GX200
Displacement = 191 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 40 m
Max Head = 40
Extra Text = Chemical Dependant
Max Discharge Capacity = 757 litres/min
Fuel Consumption = 1.4 litres/hour approx.
Continuous Duty = 3000 rpm
Fuel Tank Capacity (Litres) = 3.1 litres
Oil Capacity = 0.6 litres
Diameter = 2 "Inlet2’ BSP (male)
Outlet = 2 x 1”, 1 x 1½” BSP (male)
Dry Weight = 23.2 kg approx.

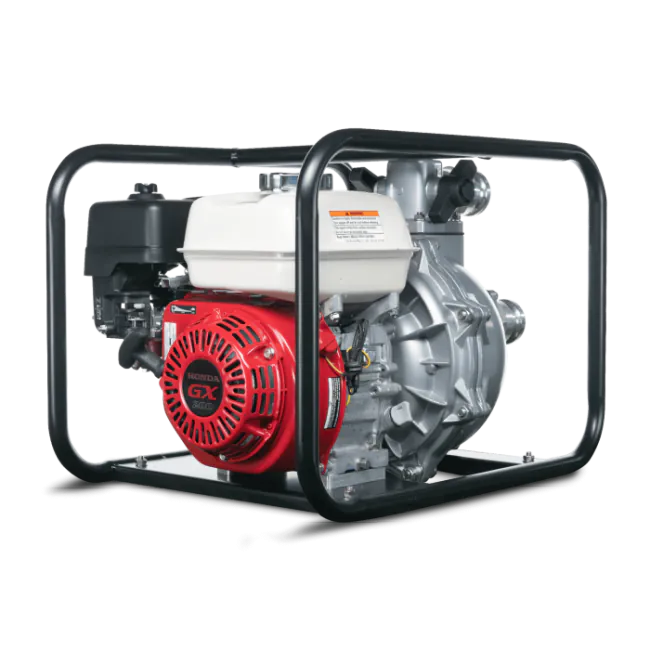

HONDA UP650 2” High Pressure Pump
Honda's High Pressure Fire Fighting Pumps are a reliable and trusted brand of fire fighting equipment. Designed to pump water higher and further to fight fires from a safe distance. Also fitted with spark arrester for the safest way to get water to where it needs to be. There's a UP650 to suit your needs and conditions.
GENERAL FEATURES
The UP650MF petrol engine utility pump has been developed to combine high pressure, high volume and excellent self priming. The pump was developed in Melbourne over many years by an experienced team of engineers for fighting fires and other water transfer applications.
Engine: Honda GX200 6.5hp
Orange Pumps has developed a unique range of engine driven pumps for fighting fires and other water transfer applications by combining high pressure, high volume and excellent self priming. The Utility Pump has been developed in Melbourne over many years by an experienced team of engineers.
Self priming quickly is critical for fire fighting applications. The UP range of pumps use a single impeller which out performs twin impeller units when priming. The UP range can prime in under 1 minute with a 3½ metre vertical lift, which is five times quicker than the industry average and even higher for twin impeller pumps.
The impeller is constructed from a single piece of cast aluminium which is far stronger and more reliable than impellers that are glued, bolted or riveted together. Each impeller has been balanced and tested to reduce wear and tear on the engine bearings caused by shaft movement from non-concentric forces. The impeller features a self clearing, wide vane for small solids handling.
Torque Tuned Impeller
Integral to the design of the pump is the torque tuned impeller which maximises the engines horsepower enabling more pressure to be delivered with every increase in revolution of the shaft. The UP range is unique in the market by delivering up to 75 metres of pressure from a single impeller.
$1,699
RRP includes GST
Pump Use = High Pressure Water Pump
Product Code = UP650MF
Pump Type = High Pressure Water Pump
Engine = GX200
Displacement = 196 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 75 m
Suction Head = 8 m
Max Discharge Capacity = 550 litres/min
Fuel Consumption = 1.7 litres/hour approx.
Continuous Duty = 3000 rpm
Fuel Tank Capacity (Litres) = 3.1 litres
Oil Capacity = 0.6 litres
Diameter = 2 "Inlet2" and 2 x 1" BSP (male)
Outlet = 2" (male)
Length = 530 mm
Width = 440 mm
Height = 55 mm
Dry Weight = 30.1 kg approx.
HONDA RPP3PUMP 3''
Honda's light chemical pump range is designed for light chemical use. It is best to check with your local dealer as to the suitability of the pump for the chemical you wish to use.
This is the recoil pull start version.
Electric start Option is $2,399
GENERAL FEATURES
The RPP3PUMP Self-Priming Centrifugal pump is lightweight and chemically resistant for general service on water, salt water, waste water, mild acids and bases. The pumps are moulded of tough, glass-reinforced polyester, polypropylene.
Pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids.
- Max. Flow – 650lpm
- Self-Priming
- GX200 engine
- Portable lift handle
- Electric start option available
APPLICATIONS
The RPP range of pumps is designed for light chemical use. These pumps are best suited for commercial and agricultural users, as most domestic users will not encounter liquid that’s abrasive enough to warrant a chemical water pump. These pumps are chemically resistant for general use with salt water, waste water, and mild acids and bases.
OPERATING CONDITIONS
Suitable for pumping chemical liquids without solids or fibres in suspension.
We advise that you consult your local Honda Dealer for product suitability as engine performance is greatly reduced with increased ambient temperature and/or altitude.
$1,799
RRP includes GST
Pump Use = Chemical Pump
Product Code = RPP3PUMP
Pump Type = Light Chemical Pump
Engine = GX200
Displacement = 200 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 40 m
Max Head = 37
Extra Text = Chemical Dependant
Max Discharge Capacity = 757 litres/min
Fuel Consumption = 0.23 litres/hour approx.
Continuous Duty = 2976 rpm
Fuel Tank Capacity (Litres) = 3.1 litres
Oil Capacity = 0.6 litres
Diameter = 3 "Inlet2’ BSP (male)
Outlet = 2 x 1”, 1 x 1½” BSP (male)
Dry Weight = 23.2 kg approx.

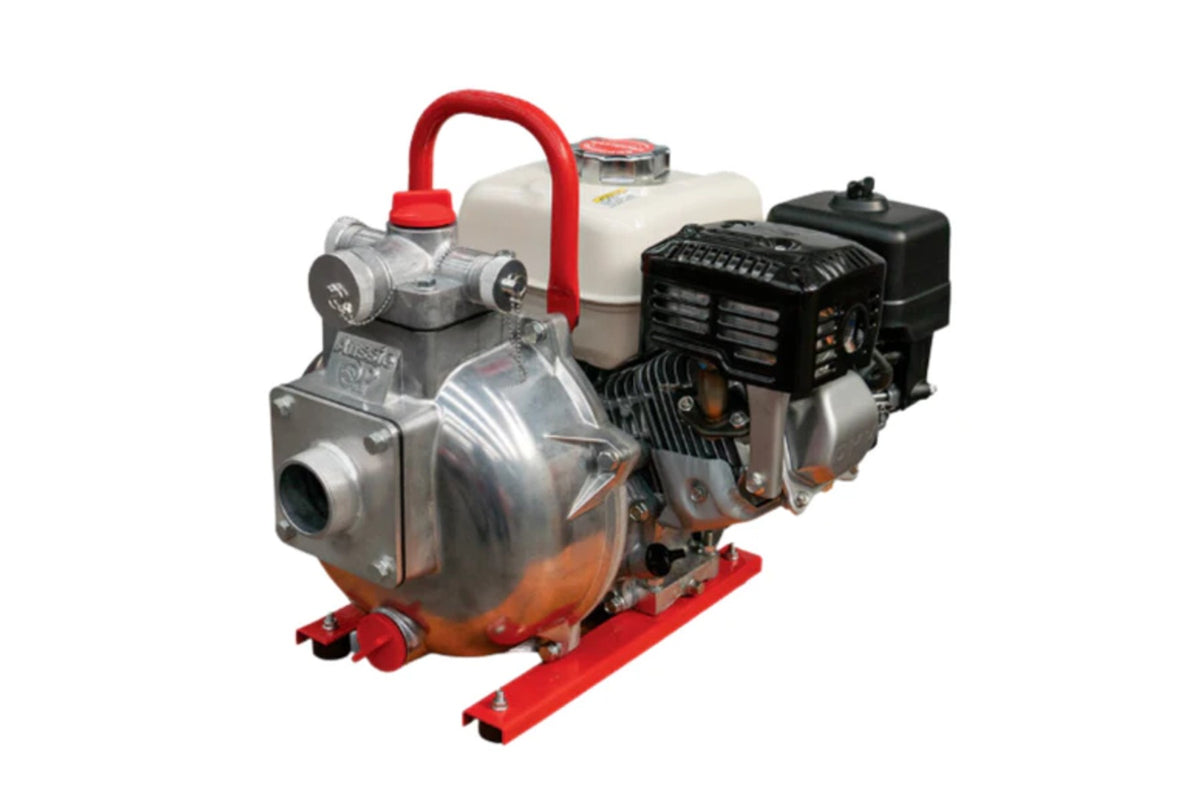

HONDA QP205 2” High Pressure Pump
Designed to out-perform and out-feature all other single impeller portable high pressure pumps, the QP205 offers significant quality features.
These include a huge 7” diameter, one piece impeller that weighs 2½ times more than impellers in other brands. The big belly body provides large water passages allowing more water to get through the pump significantly aiding performance.
The pump will produce flows of up to 450 litres per minute and heads as high as 75 metres. Powered by a Honda GX200 four stroke engine with oil alert, low oil protection, cast iron cylinder bore in conformance with tough international environmental emissions standards. The QP205 comes with anti vibration mounts, steel skids and handle as standard. Remember the golden rule, operate pump at the best efficiency point, 85% of max pump head.
- High Performance – Hydraulic design and quality components deliver more performance and capability.
- Reliability – The Honda GX200 from the world’s leading supplier ensures your pump will start first time, every time.
- Lightweight & Portable – Lightweight, portable pumps give you the ability to respond to fires quickly.
- Easy to Use – The self priming design is simple and fast to set up.
Applications:
- Fire fighting, mop up, and general fire protection
- High pressure water transfer
- Spray irrigation
- High pressure spraying
- Sheep jetting
- Boom spraying
- Stock crate wash down
- Machinery wash down
$1,949
RRP includes GST
Pump Use = High Pressure Water Pump
Product Code = QP205
Pump Type = High pressure heavy duty closed impeller
Engine = GX200
Displacement = 200 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 75 m
Max Head = 75
Suction Head = 7.6 m
Max Discharge Capacity = 450 litres/min
Mounting = Skids & Handle
Outlet = Marine grade aluminium
Discharge Port Diameter = 37.5 mm
Suction Port Diameter = 50 mm
Length = 492 mm
Width = 383 mm
Height = 432 mm
Dry Weight = 23 kg approx.

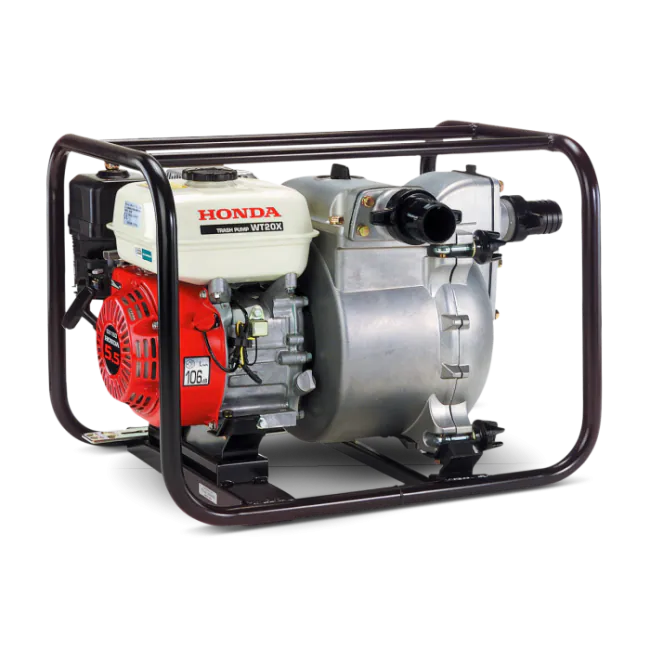

HONDA WT20 Trash Pump 2''
The WT20 trash pump is the ideal addition to any construction site for clearing storm drains, or clearing out underpasses where water is mixed with debris.
$2,199
RRP includes GST
Pump Use = Trash Pump
Product Code = WT20XK4UD4
Pump Type = Centrifugal trash pump
Engine = GX160
Displacement = 163 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 30 m
Max Head = 30
Suction Head = 8 m
Max Discharge Capacity = 650 litres/min
Self Priming Time (at 5m) = 50 seconds
Fuel Consumption = 1.4 litres/hour approx.
Mounting = Rubber
Hose Band/Stainer = Yes
Fuel Tank Capacity (Litres) = 3.6 litres
Diameter = 2 "
Discharge Port Diameter = 50 mm
Suction Port Diameter = 50 mm
Length = 620 mm
Width = 435 mm
Height = 405 mm
Dry Weight = 41.5 kg approx.

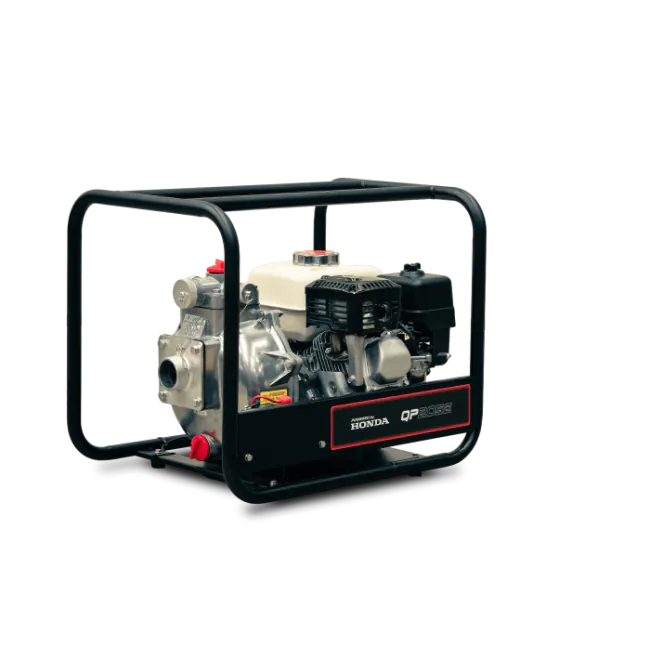

QP205E 2" High Pressure Framed Pump
Designed to out-perform and out-feature all other single impeller portable high pressure pumps, the QP205 offers significant quality features. The E version adds a frame and electric start for enhanced durability and ease of use.
These include a huge 7” diameter, one piece impeller that weighs 2½ times more than impellers in other brands. The big belly body provides large water passages allowing more water to get through the pump significantly aiding performance.
The pump will produce flows of up to 450 litres per minute and heads as high as 75 metres. Powered by a Honda GX200 four stroke engine with oil alert, low oil protection, cast iron cylinder bore in conformance with tough international environmental emissions standards. The QP205E comes with anti vibration mounts, steel frame and electric start. Remember the golden rule, operate pump at the best efficiency point, 85% of max pump head.
- High Performance – Hydraulic design and quality components deliver more performance and capability.
- Reliability – The Honda GX200 from the world’s leading supplier ensures your pump will start first time, every time.
- Lightweight & Portable – Lightweight, portable pumps give you the ability to respond to fires quickly.
- Easy to Use – The self priming design is simple and fast to set up.
- Electric start - easy starting with electric start and recoil back up.
Applications:
- Fire fighting, mop up, and general fire protection
- High pressure water transfer
- Spray irrigation
- High pressure spraying
- Sheep jetting
- Boom spraying
- Stock crate wash down
- Machinery wash down
$2,499
RRP includes GST
Pump Use = High Pressure Water Pump
Product Code = QP205E
Pump Type = High pressure heavy duty closed impeller
Engine = GX200
Displacement = 196 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 75 m
Max Head = 75
Suction Head = 7.6 m
Max Discharge Capacity = 450 litres/min
Mounting = Frame
Outlet = Marine grade aluminium
Discharge Port Diameter = 37.5 mm
Suction Port Diameter = 50 mm
Length = 492 mm
Width = 383 mm
Height = 432 mm
Dry Weight = 23 kg approx.

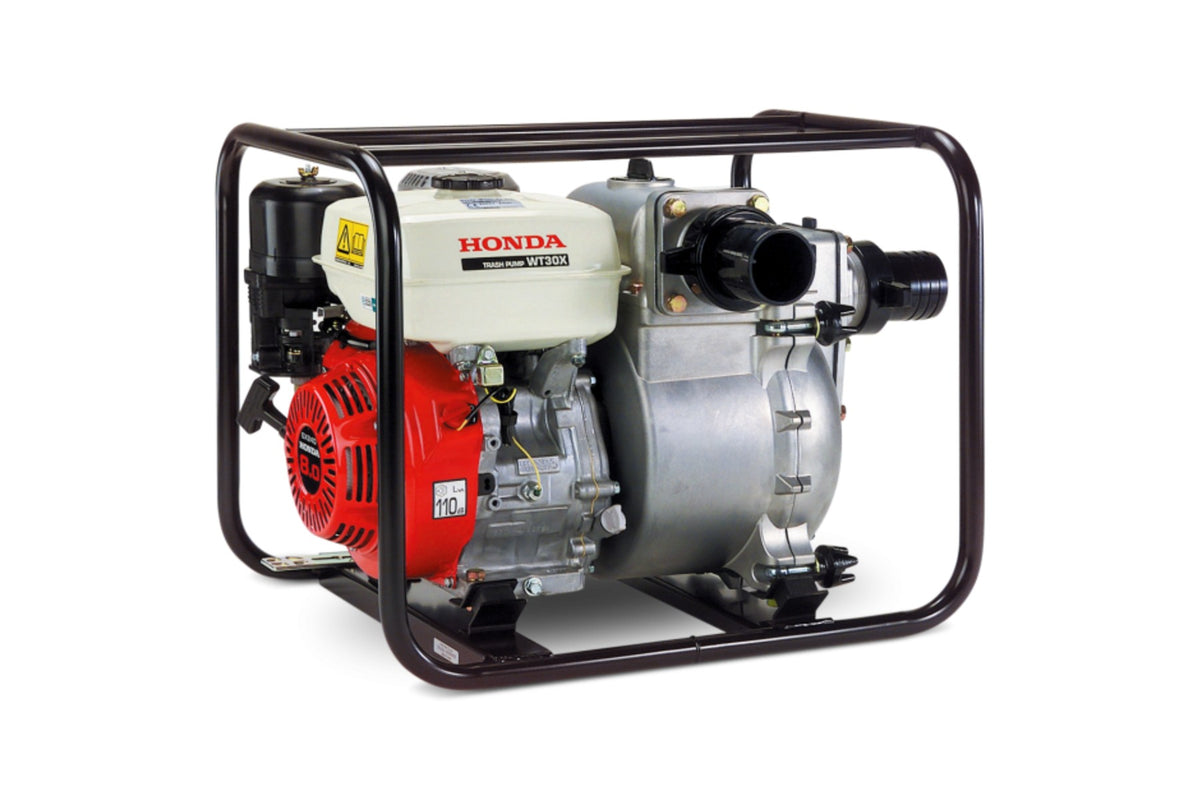

WT30 Trash Pump 3''
The WT30 trash pump is the ideal addition to construction sites, farms or environments where stormwater drains or underpasses have water mixed with debris and you need a premium pump.
Drawing on decades of engineering advancements, the Honda 4-Stroke GX270 engine that powers the WT30 ensures easy starting, functionality, outstanding fuel economy, low emissions and long-lasting durability.
With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform day in, day out.
1,210L PER MINUTE
With capacity to deliver 1,210 litres per minute, this 3" volume water pump has a maximum suction head of 8m and a maximum total head of 23m.
Like so many other Honda products, the WT30 starts 'first time every time' with Honda’s famous one pull easy start system.
It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally friendly pump with low emissions & fuel consumption.
$2,799
RRP includes GST
Pump Use = Trash Pump
Product Code = WT30XK4UD4
Pump Type = Centrifugal trash pump
Engine = GX270
Displacement = 270 cc
Fuel Type = Unleaded
Oil Alert = Yes
Total Head = 27 m
Max Head = 27
Suction Head = 8 m
Max Discharge Capacity = 1210 litres/min
Self Priming Time (at 5m) = 50 seconds
Fuel Consumption = 2.1 litres/hour approx.
Mounting = Rubber
Hose Band/Stainer = Yes
Fuel Tank Capacity (Litres) = 6 litres
Discharge Port Diameter = 80 mm
Suction Port Diameter = 80 mm
Length = 660 mm
Width = 495 mm
Height = 515 mm
Dry Weight = 63 kg approx.
